Low Pressure Fire Tube 10 ton Steam Boiler

September 27, 2021
chemical used 10 ton gas boiler
Place of Origin: China
Brand Name: ZOZEN
Certification: ISO, CE, ASME
Model Number: WNS10-1.25-Y(Q)
Minimum Order Quantity: 1 set
Price: Contact us for Latest Price
Payment Terms: L/C, T/T
Packaging: Nude packing with foam for boiler body, wooden case for boiler accessories.

Detail Information

  • Output: Steam
  • Steam Capacity: 10 ton per hour, 10000kg, 10 tph
  • Fuel Design: Nature gas, coke oven gas, biogas, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
  • Design Pressure: 1.25 Mpa (12.5 bar)
  • Warranty: 1 Year
  • Structure: Fire Tube Wet Back Horizontal Boiler
  • Factory: ZOZEN boiler Co., Ltd.
  • Application: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
  • Style: Horizontal
  • Design Efficiency: High Effciency 95%-99%
  • Condition: New
  • Use: Industrial
  • Product Name: 10 ton gas fired steam boiler

Typical Projects

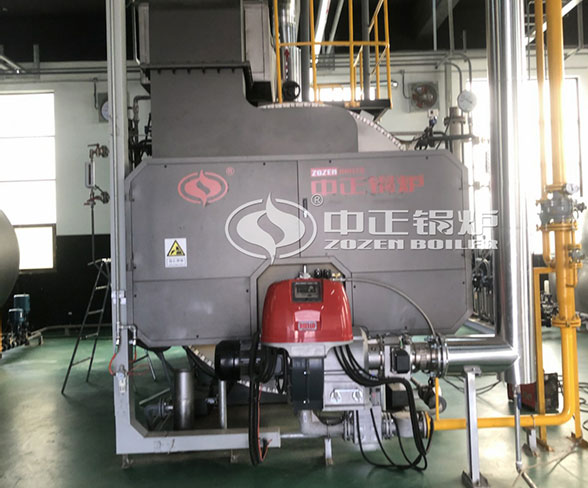

6 ton gas fire tube boiler

6 ton gas fire tube boiler

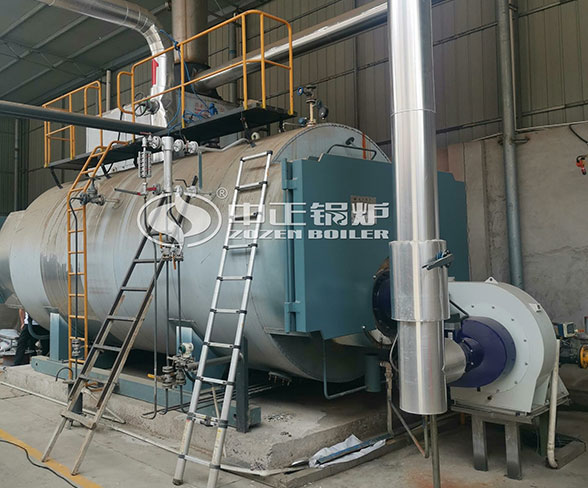

gas steam boiler for food plant

gas steam boiler for food plant

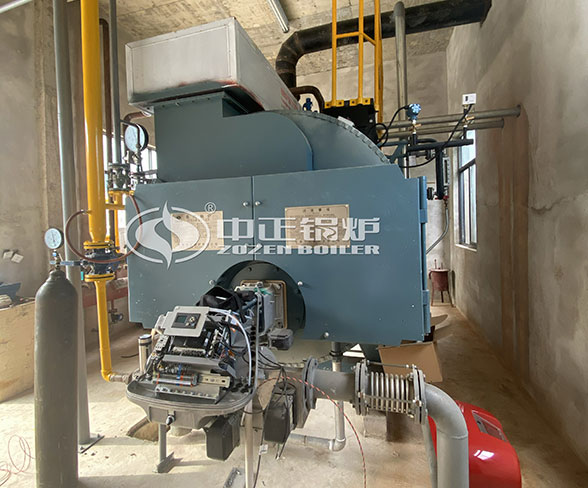

2 ton oil gas fired boiler

2 ton oil gas fired boiler

Gas Fired Steam Boiler Introduction

  • Model: WNS
  • Capacity: 1-20 ton/h
  • Design pressure: 0.7/1.0/1.25/1.6/2.5Mpa(7/10/12.5/16/25bar)
  • Stem temperature: 184/194℃
  • Design fuel: natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil,etc

WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.The lock protection function protects the equipment running safely. It normally suitable for 1000kg to 20000kg/h capacity,use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

wns gas fired steam boiler

Core technology

  • Nitrogen oxide emissions<30mg/m3
  • PLC control system
  • The 5th stage water level protection
  • Flame-out,power failure self-locking protection function
  • Automatic fault identification function
  • Data collection analysis function
  • Internet og Things remote monitoring

installation of wns gas boiler

Product Parameters

Model Rated steam capacity(t/h) Rated working pressure(Mpa) Rated steam temperature(℃) Maximum transport size(m)
(L×W×H)
WNS1-0.7-Y(Q) 1 0.7 170 3.3×1.8×2.1
WNS1-1.0-Y(Q) 1 1 184 3.3×1.8×2.1
WNS1.5-1.0-Y(Q)  1.5 1 184 3.0×1.8×2.0
WNS1.5-1.25-Y(Q) 1.5 1.25 194 3.0×1.8×2.0
WNS2-1.0-Y(Q)  2 1 184 4.4×2.1×2.5
WNS2-1.25-Y(Q) 2 1.25 194 4.4×2.1×2.5
WNS3-1.0-Y(Q) 3 1 184 4.6×2.3×2.6
WNS3-1.25-Y(Q) 3 1.25 194 4.6×2.3×2.6
WNS4-1.25-Y(Q) 4 1.25 194 4.7×2.5×2.9
WNS4-1.6-Y(Q) 4 1.6 204 4.7×2.5×2.9
WNS5-1.25-Y(Q) 5 1.25 194 5.3×2.7×3.3
WNS5-1.6-Y(Q) 5 1.6 204 5.3×2.7×3.3
WNS6-1.25-Y(Q) 6 1.25 194 5.9×2.6×3.0
WNS6-1.6-Y(Q) 6 1.6 204 5.9×2.6×3.0
WNS8-1.25-Y(Q) 8 1.25 194 5.9×2.8×3.1
WNS8-1.6-Y(Q) 8 1.6 204 5.9×2.8×3.1
WNS10-1.25-Y(Q) 10 1.25 194 7.7×2.8×3.1
WNS10-1.6-Y(Q) 10 1.6 204 7.7×2.8×3.1
WNS15-1.25-Y(Q) 15 1.25 194 7.0×3.1×3.6
WNS15-1.6-Y(Q) 15 1.6 204 7.0×3.1×3.6
WNS20-1.25-Y(Q) 20 1.25 194 8.3×3.4×4.0
WNS20-1.6-Y(Q) 20 1.6 204 8.3×3.4×4.0

ZOZEN Factory

ZOZEN is one of the best modern boiler manufacturers in China, our products include steam boilers, hot water boilers and thermal oil heaters. ZOZEN boiler is located in Wuxi, covers 150 thousand square meters of production area, equipped with first-class production equipment, passed the ISO9001:2000 international quality system certification. The company gained the ” S ” and ” U ” steel seal from ASME of US.

about zozen

    Pre-sale service:

  • We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
  • In-sale service:

  • We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
  • After-sale service:

  • provide full range of original spare parts.
  • Engineers abroad installation and commissioning service is available.
  • Our engineers will held a training for boiler workers to ensure the safe operation.
  • Free maintenance and repair for one year and lifelong service.
