The Use of Boiler in Chemical Industry

The use of boiler in chemical industry is fundamental to many processes that require controlled heat and steam. Chemical plants depend on reliable steam sources for reaction heating, distillation, stripping, sterilization, heating of feedstocks, and utilities such as space heating and cleaning. Selecting the right boiler type influences production efficiency, safety, product quality, and environmental compliance. This article explains common steam boilers applied in chemistry plants, describes ZOZEN’s suitable boiler models for the chemical industry, and summarizes ZOZEN’s strengths and service system.

1.Common steam boiler types for the chemical industry

In chemical plants, operators commonly choose boilers that provide precise steam control, high reliability, and the capacity to meet variable demand. The use of boiler in chemical industry often  prefer gas/oil boiler and coal boiler:

Gas and oil boilers: They feature high efficiency, stable operation, and low emissions. Widely applied in the chemical industry, gas and oil boilers ensure reliable steam supply while meeting strict environmental requirements.

Coal boiler: With high thermal efficiency and strong load adaptability, coal boilers provide a cost-effective steam solution for chemical plants with large fuel consumption and sufficient coal supply.

Key selection factors for the use of boiler in chemical industry include steam pressure and temperature requirements, load variability, fuel availability, space constraints, emission limits, and required redundancy for safety-critical processes.

2. ZOZEN boilers suitable for the chemical industry

ZOZEN Boiler offers a range of boiler types engineered to meet the demanding requirements of chemical manufacturers. Below are several ZOZEN models commonly applied in chemical plants and why they are well suited to the use of boiler in chemical industry.

WNS series (oil & gas-fired fire-tube steam boiler)

The WNS series is a fire-tube boiler designed for high efficiency and compact installation. It fits many chemical plant applications where medium-pressure steam and limited footprint are required.

Benefits: High thermal efficiency(98% with a condenser), low unburnt fuel, advanced burners with low NOx emissions, and integrated automatic control for stable operation.

Why for chemical industry: For the use of boiler in chemical industry where installation space is limited and reliability is essential, the WNS provides stable steam supply with rapid start-up and precise control.

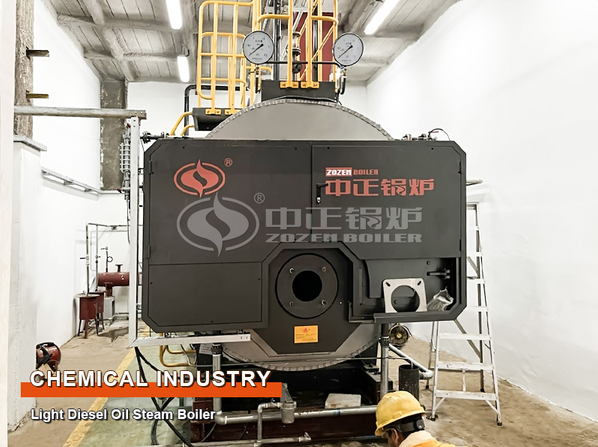

The Mencast is a global leading provider of maintenance and refurbishment solutions based in Singapore, focusing on delivering high-quality services to customers in the maritime and oil and gas industries. They have been searching for an efficient, reliable, and safe boiler to handle hazardous waste. After comparing and evaluating with several boiler suppliers, Mencast finally chose the 2-ton WNS series light diesel steam boiler from ZOZEN Boiler.

ZOZEN Boiler is well-known for its high quality, excellent performance, and reliability, which meets the requirements of Mencast. The boiler has been certified by ASME and Singapore MOM, demonstrating its high quality and safety standards.

During the cooperation, ZOZEN Boiler’s after-sales service was outstanding. ZOZEN Boiler’s engineers were always responsive to customer needs, providing technical support and guidance to ensure stable boiler operation. Mencast appreciates ZOZEN Boiler’s professional service and response speed, which not only strengthens the partnership between the two parties but also provides a good reference for other potential customers.

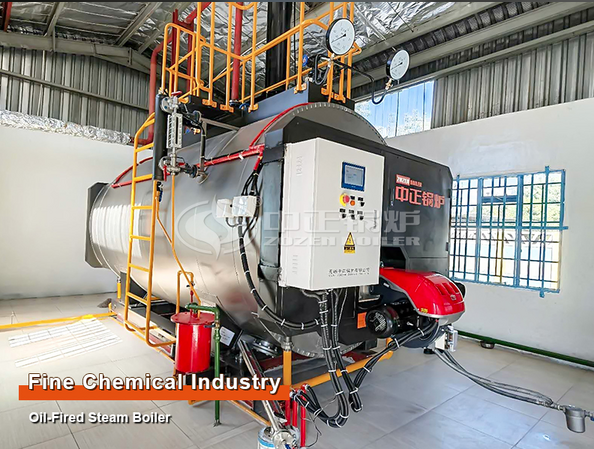

A fragrance factory in Botswana was struggling to find a solution to their heating supply issue when they came across the WNS3-1.25-Y oil-fired steam boiler from ZOZEN Boiler.

As an industrial enterprise that requires high-temperature conditions for production, the fragrance factory needs stable and reliable steam to provide thermal energy for its manufacturing processes. The WNS3-1.25-Y oil-fired steam boiler proved to be the perfect solution, delivering stable steam supply to meet the factory’s high requirements for heat energy with its efficient combustion system and advanced control technology.

Compared to traditional heating supply methods, the WNS series oil-fired steam boiler boasts advantages such as high energy utilization, low pollution emissions, and low operating costs. These benefits not only help the fragrance factory achieve economic and production efficiency improvements, but also align with the principles of sustainable development.

SZL series (coal-fired water-tube steam boiler)S

In regions where coal remains an economical fuel, SZL boilers supply high-capacity steam for heavy industrial processes.

Why for chemical industry: The use of boiler in chemical industry that depends on high-capacity, continuous steam can employ SZL units when coal fuel economics and local regulations permit.

Benefits: Large steam output, durable construction, and customizable combustion systems to meet emission requirements. Thermal efficiency is over 81%.

MMC IMPEX CHEMICAL PVT LTD is a local enterprise specializing in soap manufacturing and processing in Pakistan. This is the first time to cooperate with ZOZEN Boiler. MMC first learned about ZOZEN Boiler through online information, and finally chose ZOZEN Boiler as its boiler supplier by comparison.

According to the production line, MMC ordered a set of 6-ton coal-fired steam boiler from ZOZEN Boiler.

ZOZEN Boiler provides the SZL series coal-fired steam boiler for the customer. The capacity of the boiler ranges from 4 tons/hr to 35 tons/hr, and the working pressure is 1 to 2.5 MPa. With the wide range of fuels, bituminous coal, lean coal and anthracite are suitable for the boiler, users in Pakistan can choose the fuel according to the actual demand.

Different delivery methods can be adopted according to the boiler capacity. The boiler with capacity of 4-6 tons/hr adopts quick fitting pipe structure, the boiler with capacity of 6-35t/h is composed of 2 main components. The upper part is the heating area, and the bottom part is the combustion device.

According to different capacity, different numbers of independent wind bins of the grate are set from front to back. Users can reasonably distribute the air according to different combustion conditions to ensure that the fuel is fully burned, and the thermal efficiency of the boiler can reach over 82%.

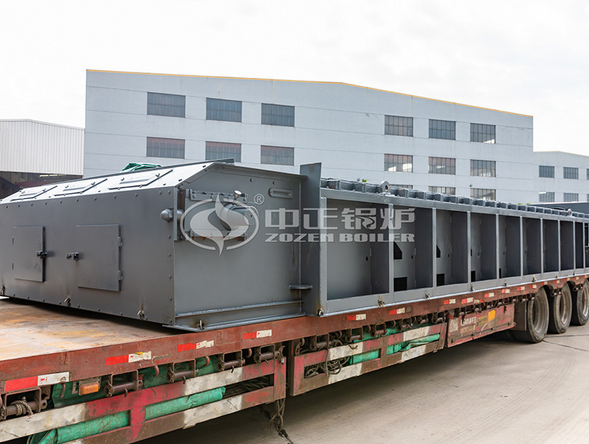

China CEC Engineering Corporation is a large-scale engineering consulting and design company. Its main business covers engineering design, consulting, supervision and general contracting. It provides services for pulp and paper, energy and environmental protection, salt manufacturing and salt chemical engineering, household appliances, food, construction, municipal and other industries. In order to meet the demands of the project to construct a comprehensive PVC resin production plant with an annual output of 60,000 tons in Mekele, Ethiopia, CEC finally chose ZOZEN Boiler as the boiler supplier for this project based on the investigation on the domestic boiler market. This time, CEC purchased 3 sets of SZL series coal-fired chain grate water tube steam boiler from ZOZEN Boiler who had completed the shipment recently.

ZOZEN SZL series coal-fired steam boiler is featured with the sufficient output, a high degree of automation and a high thermal efficiency of over 82%. This series of boiler has the double drums with a longitudinal layout and the chain grate structure. The large furnace design can promote the sufficient combustion of fuel and reduce the heat load. What’s more, in order to improve the fuel utilization, there are multiple separate air chambers and air dampers installed at the lower part of the grate to achieve the precise air distribution to meet the demands of air volume needed by fuel in each combustion stage. Finally, ZOZEN Boiler also customized the dust removal, desulfurization and denitration equipment at the end of the boiler to ensure that the exhaust gas emission of the boiler could meet the local environmental protection standards.

For the use of boiler in chemical industry, advanced control and safety are non-negotiable. ZOZEN equips boilers with PLC or DCS-compatible control systems, automatic combustion management, water level and pressure interlocks, and multi-tier safety devices. Integration capabilities allow ZOZEN boilers to connect with plant DCS networks, enabling remote monitoring, predictive maintenance, and alarm management—critical for chemical process continuity and safety.

3. ZOZEN’s strengths and service system

ZOZEN Boiler’s capabilities make it a trusted partner for the use of boiler in chemical industry worldwide. Key strengths include:

Manufacturing scale and quality: ZOZEN operates large, modern production facilities with stringent QA processes. Their manufacturing capacity allows for rapid delivery of standard and customized boilers.

Technical expertise and R&D: ZOZEN invests in research and development to improve combustion efficiency, reduce emissions, and enhance control systems—directly benefiting the use of boiler in chemical industry through better performance and compliance.

Certifications and compliance: ZOZEN holds international certifications and complies with many global standards, ensuring boilers meet safety, environmental, and quality requirements important to chemical customers.

Turnkey project experience: From initial engineering to installation and commissioning, ZOZEN provides turnkey solutions tailored to the use of boiler in chemical industry, including piping, flue gas treatment, and heat recovery systems.

After-sales service: ZOZEN maintains a global service network offering preventive maintenance, spare parts supply, remote diagnostics, and field engineers for timely support—ensuring stable operation for chemical plant boilers.

Training and documentation: To support safe operation, ZOZEN delivers operator training, operation manuals, and maintenance programs aligned with industry best practices.

Conclusion
The use of boiler in chemical industry demands reliable steam generation, precise control, safety, and environmental compliance. ZOZEN Boiler supplies a range of suitable boiler types—WNS fire-tube boilers, SZL coal-fired boilers—each tailored to specific plant needs. Backed by robust manufacturing, technical innovation, global certifications, and a comprehensive service system, ZOZEN is well positioned to support the complex and critical steam needs of the chemical industry. For any chemical plant evaluating the use of boiler in chemical industry applications, ZOZEN offers proven solutions that balance performance, cost, and compliance.
