Horizontal 2 Ton Capacity Natural Gas Boiler

July 27, 2021

The rated evaporation capacity of the 2 ton gas boiler is 2t/h. When the boiler is running at full load, the steam produced in one hour is 2 tons, which can provide 1.2 million calories of heat for production. 2 ton gas steam boiler model is WNS2-1.25-Q, the design pressure is 1.25 MPa, the steam temperature is 194°C, and the fuels that can be used are natural gas, liquefied gas, gas, biogas, etc. The overall structure of this horizontal gas boiler ex-factory is about 3750*1900*2150mm.

The overall structure of this horizontal gas boiler is about 3750*1900*2150mm, and the gas consumption of 2 tons boiler is about 84 cfm. The thermal efficiency can be as high as 98% or more, effectively saving boiler operation cost for enterprises.

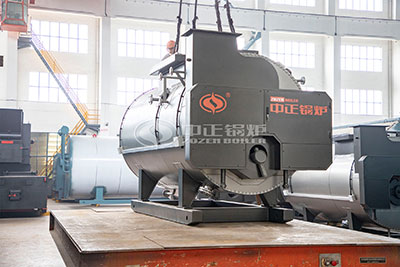

wns horizontal natural gas boiler

wns horizontal natural gas boiler

Get Quotation

ZOZEN’s industrial oil and gas boilers adopt advanced steam boiler fully automatic controller, which can be easily set by users through the human-machine interface, and the boiler can complete the operation of start/stop, load adjustment and automatic water supply as required, ensuring the safety, stability and high efficiency of the hotel heating system.

The gas steam boiler mainly consists of two main bodies, the shell and the furnace gall, and accessories to ensure its safe and economic continuous operation, instrumentation appurtenances, self-control and protection systems, etc. This boiler is a pot-type boiler with water-cooled biscuit, and the two return flue tubes are arranged in the left and right divisions of the pot, folding back in the front flue box at the front of the pot. Between the pot barrel and the lower connecting box, there are descending tubes and water-cooled biscuit tubes, forming the framework of the combustion chamber. The upper part of the pot barrel has a vapor separator to reduce the water vapor carried out by the water. The heated surface of the pot is the lower part of the barrel, the water-cooled biscuit tube and the smoke and fire tube.

As we all know, food factories have very high requirements for hygiene, environmental protection, etc. Under the current situation of strict environmental protection standards, it makes the low-NOx gas boiler the first choice for small-scale production steam supply and heating. The Indonesian customer purchased a 2 ton capacity natural gas boiler model WNS2-1.25-Q. After more than 30 days of hard work, this boiler was exported to the project site on time to provide sufficient power to support the processing and production of the food factory.

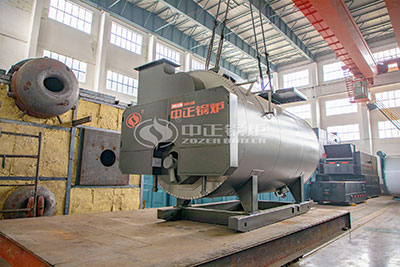

gas oil fired steam boilers

gas oil fired steam boilers

Get Quotation

The heat released by burning the fuel in the furnace of the gas steam boiler heats the water in the pot and makes it vaporize into steam. Water in the pot (pot cylinder) is constantly heated by the energy released from the combustion of gas fuel in the furnace, the temperature rises and produces steam with pressure, as the boiling point of water rises with the pressure, the pot is sealed, the expansion of water vapor in it is restricted and the pressure is generated to form thermodynamic force (strictly speaking the water vapor of the boiler is water in the pot cylinder is heated to saturated water at constant pressure and then vaporized to form) is widely used as an energy source.

WNS series natural gas steam boiler equipment has high efficiency, small footprint, very easy to place, and in the same type of gas boiler, the service life is relatively the longest. ZOZEN has ASME certification, EU export standards, and welcome online consultation!
