Boiler Type Guide: Classification, Selection, and ZOZEN Solutions

Choosing the right boiler type is one of the most important decisions for industrial enterprises. Boilers are essential equipment used to generate steam or hot water for heating, processing, and power applications. Different industries require different performance standards, fuel compatibility, pressure levels, and operational efficiency. Therefore, understanding each boiler type and its characteristics is crucial for achieving stable production and energy efficiency.

This article explains how industrial boilers are classified, how to select the appropriate boiler type, and introduces the major boiler products offered by ZOZEN Boiler, along with their advantages and service support.

Part 1: What Is a Boiler Type? Classification, Features, and Applications

A boiler type refers to the structural design, fuel category, pressure level, and application method of a boiler system. Industrial boilers can be classified in several ways depending on operational requirements.

1. Classification by Structure

Fire-Tube Boiler Type
In this design, hot gases pass through tubes surrounded by water. This boiler type is compact, easy to install, and suitable for small to medium capacity applications. It is commonly used in food processing, textile factories, and small manufacturing plants.

Water-Tube Boiler Type
Water flows inside the tubes while combustion gases circulate outside. This boiler type is suitable for high-pressure and large-capacity applications, such as chemical plants, power generation facilities, and heavy industry. It offers fast steam generation and strong load adaptability.

2. Classification by Fuel

Industrial boilers can also be divided according to fuel:

Gas-fired boiler type

Oil-fired boiler type

Coal-fired boiler type

Biomass-fired boiler type

Fuel selection significantly impacts operational costs, environmental performance, and regulatory compliance. For example, a gas-fired boiler type offers clean combustion and high efficiency, while a biomass option provides renewable energy advantages.

3. Classification by Output Medium

Steam boiler type

Hot water boiler type

Thermal oil boiler type

Part 2: How to Choose the Right Boiler Type

Selecting the appropriate boiler type requires careful technical and economic evaluation. The following factors should be considered:

1. Steam or Heat Demand

Determine the required steam capacity (tph) or heating output. Small facilities may prefer a compact fire-tube boiler type, while large-scale industrial plants typically require a high-capacity water-tube configuration.

2. Working Pressure and Temperature

High-pressure applications demand a structurally robust boiler type designed for safe operation under extreme conditions.

3. Fuel Availability and Cost

Local fuel supply plays a major role in selecting a suitable boiler type. Natural gas is ideal for clean energy requirements, while coal or biomass may offer economic advantages in specific regions.

4. Environmental Regulations

Emission standards vary by country and region. Enterprises must choose a boiler type that complies with NOx, SOx, and particulate emission regulations.

5. Installation Space and Budget

Compact packaged boilers are ideal for limited space conditions. Budget considerations also influence whether a standard or customized boiler type is selected.

A systematic evaluation of these factors ensures the chosen boiler operates efficiently and economically over the long term.

Part 3: ZOZEN Boiler Types – Parameters and Advantages

As a professional industrial boiler manufacturer, ZOZEN offers a comprehensive range of boiler solutions to meet diverse industrial needs. Customers can select the most suitable boiler type based on their operational requirements.

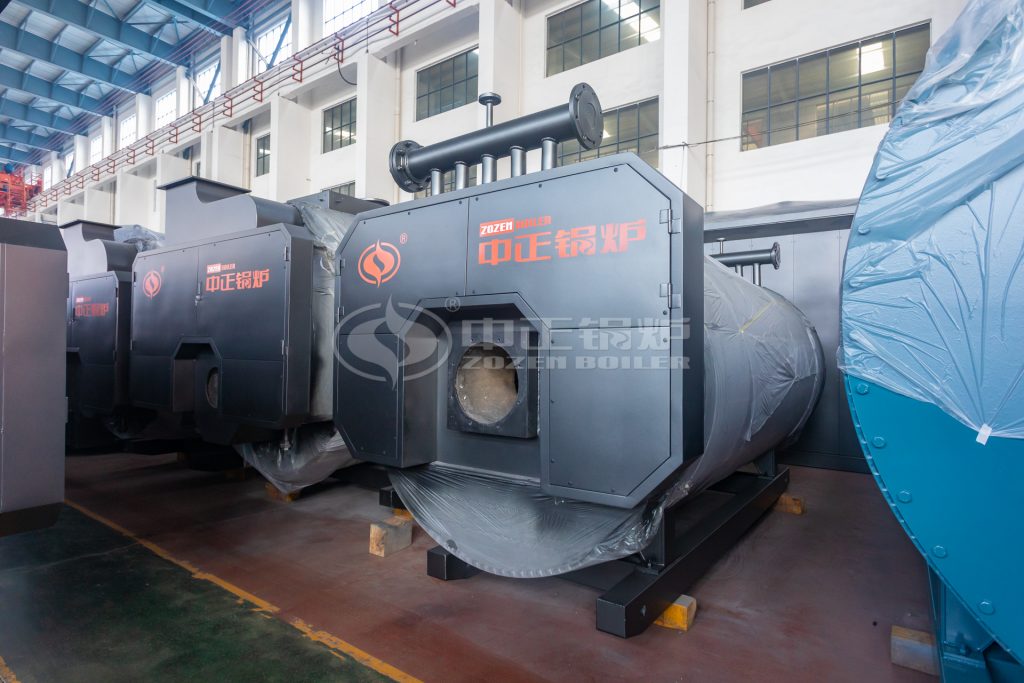

1. WNS Series Gas/Oil-Fired Boiler

Capacity: 1–20 tph

Pressure: 0.7–2.0 MPa

Structure: Two/Three-pass wet-back fire-tube

Thermal Efficiency: Up to 98% (with condenser)

This boiler type features a compact packaged design, automatic PLC control, and low-NOx combustion technology. It is ideal for food processing, pharmaceutical, and light industrial applications.

2. SZS Series Gas/Oil-Fired Boiler

Capacity: 2–110 tph

Pressure: Up to 5.3 MPa

structure: Double-drum water-tube

Thermal Efficiency: ＞98%

Designed for large-scale production facilities, this boiler type offers high steam quality, strong load adaptability, and stable long-term operation.

3. DZL Series Biomass-Fired Boiler

Capacity: 2–10 tph

Chain grate combustion

Structure: Single-drum water-tube

Thermal Efficiency: ＞83%

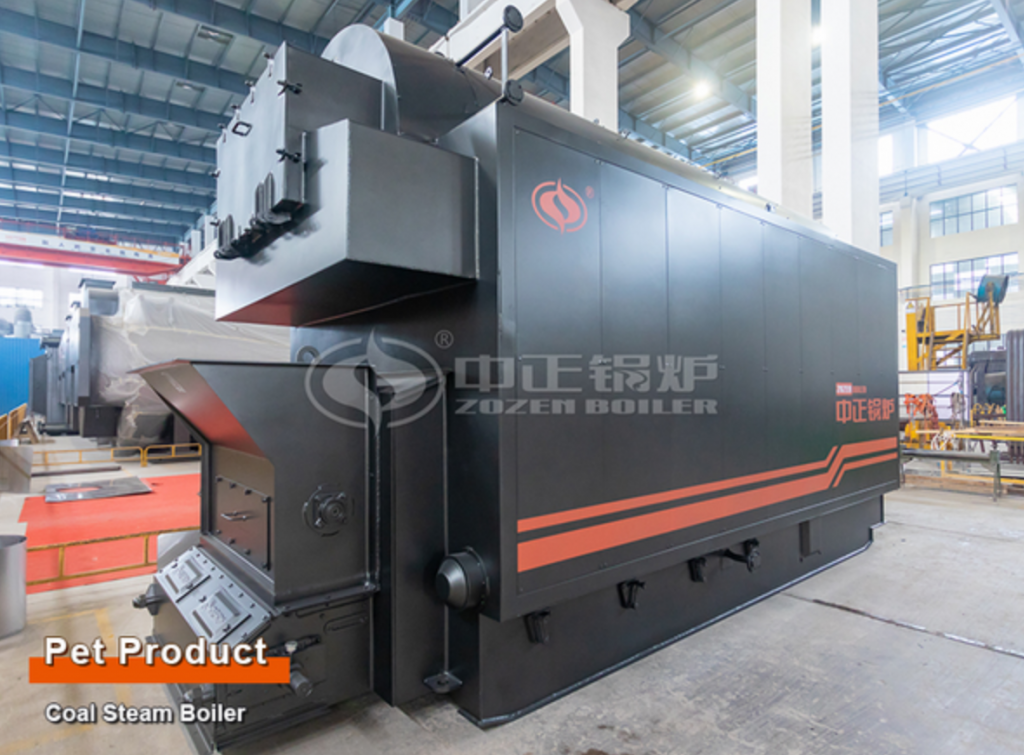

4. DZL Series Coal-Fired Boiler

Thermal capacity: 2-10 t/h

Working pressure: 1-2.5 MPa

Structure: Single-drum water-tube

Thermal Efficiency: ＞80%

Available fuel: Bituminous coal,lean coal,anthracite

5. SZL Series Biomass-Fired Boiler

Thermal capacity: 6-35 t/h

Working pressure: 1-2.5 MPa

Double-drum water-tube design

Thermal Efficiency: ＞86%

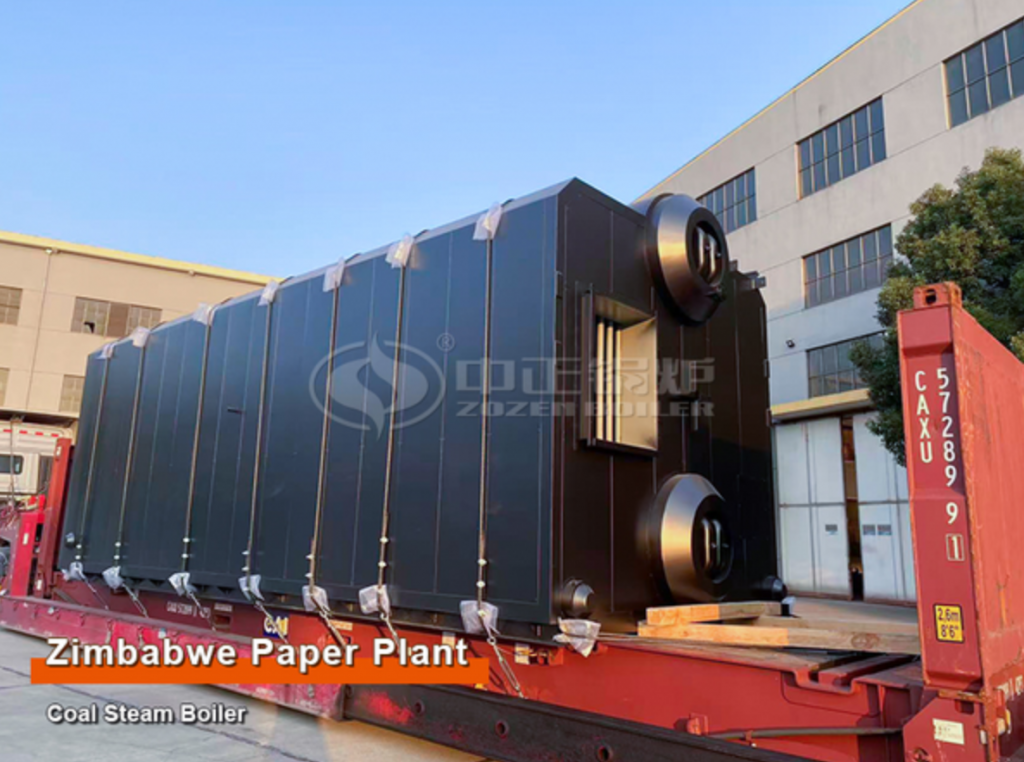

6. SZL Series Coal-Fired Boiler

Capacity: 6–35 tph

Double-drum water-tube design

Thermal Efficiency: ＞81%

Vailable fuel: Bituminous coal, lean coal, anthracite

This boiler type provides reliable performance and efficient combustion for medium to large industrial projects.

6. YQW/YQL Series Thermal Oil Boiler (Heat Conduction Oil Boiler)

Thermal Capacity: 1400–14000 kW

Working Temperature: Up to 320°C

Fuel Options: Gas, oil, coal, or biomass

Structure: Horizontal three-pass coil design

Thermal Efficiency: ＞92%

Unlike steam-based systems, this boiler type uses thermal oil as the heat transfer medium. It can achieve high operating temperatures under low pressure, ensuring safer operation and stable heat supply.

The thermal oil boiler type is widely applied in industries such as chemical processing, building materials manufacturing, asphalt heating, textile dyeing, and food frying lines where precise temperature control is essential.

Key Advantages of ZOZEN Boiler Types

• High thermal efficiency
• Advanced combustion technology
• Intelligent automation systems
• Durable pressure vessel construction
• Wide fuel adaptability
• Customized engineering solutions

These advantages ensure that every boiler type manufactured by ZOZEN meets international performance standards.

Part 4: ZOZEN’s Industrial Foundation and Customer-Centered Service Network

Selecting the right boiler type is not only about equipment specifications — it is about partnering with a manufacturer that offers long-term reliability, technical expertise, and responsive support. ZOZEN has built a comprehensive operational framework that combines precision manufacturing, engineering innovation, and global service capability.

• Large-Scale Production Capacity

ZOZEN operates modern industrial facilities designed to meet high manufacturing standards. Equipped with advanced CNC processing equipment, automatic welding systems, and precision inspection instruments, the company ensures consistency at every stage of production.

From material selection to final pressure testing, each boiler type undergoes strict quality verification to guarantee structural strength, operational safety, and durability under demanding industrial conditions.

• Technical Expertise and Innovation

A dedicated engineering team continuously works on combustion optimization, thermal efficiency improvement, and emission reduction technology. By integrating advanced design software with practical field experience, ZOZEN develops efficient and environmentally compliant solutions for every boiler type it produces.

This focus on innovation enables customers to benefit from reduced fuel consumption, stable steam output, and lower operating costs.

• Standardized Quality Assurance

ZOZEN implements a comprehensive quality management system aligned with international standards. Every boiler type is manufactured in accordance with globally recognized certifications such as ASME, CE, and ISO, ensuring compliance with safety and performance regulations across different markets.

• Structured Project Implementation

To ensure seamless project execution, ZOZEN follows a systematic workflow:

• Detailed technical consultation and demand analysis
• Customized system design and layout planning
• Professional installation guidance
• Commissioning and performance testing
• Operator training programs

This structured process ensures that each boiler type is properly installed and optimized for peak efficiency from the first day of operation.

• Long-Term Operational Support

Beyond delivery, ZOZEN maintains a responsive after-sales service system. Technical teams provide remote assistance, troubleshooting support, and spare parts supply to ensure uninterrupted operation.

By offering continuous support throughout the equipment lifecycle, ZOZEN helps customers maximize productivity and extend the service life of every boiler type installed.

Conclusion

Understanding the classification and characteristics of each boiler type is essential for industrial enterprises seeking efficiency and long-term reliability. From structural design and fuel category to pressure level and application industry, selecting the right boiler solution directly impacts operational performance.

With diversified products, advanced technology, strict quality control, and comprehensive service support, ZOZEN offers a wide range of high-performance boiler solutions tailored to global industrial needs.
