Three Pass Wet Back Boiler: Structure, Advantages, ZOZEN WNS Series and Service Strength

In today’s industrial heating and steam generation field, boiler efficiency and safety are key factors influencing operational costs and long-term reliability. Among various fire-tube boiler designs, the three pass wet back boiler is widely recognized for its high thermal efficiency and durable structure. With optimized heat transfer and improved combustion performance, it has become a preferred choice for many industries.

This article introduces the working principle of the three pass wet back boiler, compares it with two-pass boilers, explores the technical parameters and advantages of ZOZEN’s WNS series, and presents ZOZEN’s manufacturing strength and comprehensive service system.

Part 1: What Is a Three Pass Wet Back Boiler

A three pass wet back boiler is a type of horizontal fire-tube boiler designed with three flue gas passes inside the furnace structure. The term “three pass” refers to the number of times the hot flue gases travel through the boiler before being discharged. “Wet back” means that the rear reversal chamber is surrounded by water rather than refractory materials, which enhances cooling and improves safety.

Working Principle of a Three Pass Wet Back Boiler

In a three pass wet back boiler, the combustion process works as follows:

1. First Pass: Fuel burns in the furnace, and high-temperature flue gas flows through the main combustion chamber.
2. Second Pass: The flue gas reverses direction and passes through a bank of fire tubes.
3. Third Pass: The gas reverses again and travels through another set of fire tubes before exiting through the chimney.

Because the rear chamber is water-cooled, the wet back design reduces thermal stress and extends the service life of the boiler shell.

Part 2: ZOZEN WNS Series Three Pass Wet Back Boiler – Parameters and Advantages

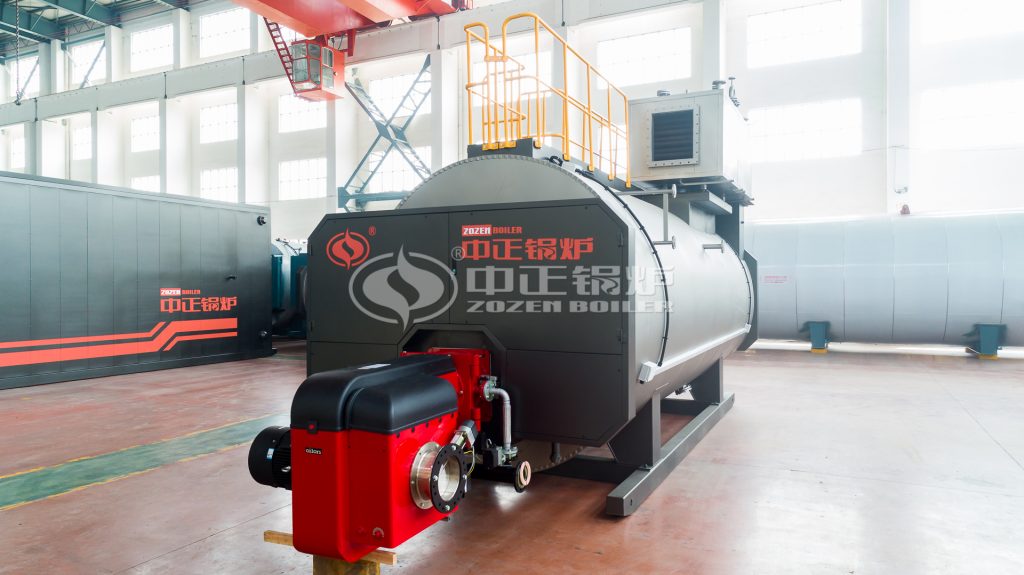

As a leading industrial boiler manufacturer, ZOZEN Boiler offers the WNS series, a fully automatic gas- or oil-fired three pass wet back boiler designed for superior performance and environmental compliance.

ZOZEN WNS series three pass wet back boiler typically features the following specifications:

• Capacity Range: 1 – 20 tons/hour (steam boiler models)
• Working Pressure: 0.7 – 2 MPa
• Thermal Efficiency: Up to 98% (with economizer and condenser)
• Fuel Type: Natural gas, diesel, heavy oil, dual-fuel
• Control System: PLC intelligent automatic control
• Emission Level: Low NOx emissions meeting international environmental standards

The compact horizontal structure ensures easy installation and space-saving design, making it suitable for various industrial plants.

Advantages of ZOZEN WNS Three Pass Wet Back Boiler

• High Thermal Efficiency
  The optimized three-pass heat exchange design maximizes heat absorption. Flue gases travel a longer path, ensuring full energy utilization.
• Wet Back Structure for Enhanced Safety
  The water-cooled rear chamber reduces high-temperature stress and prevents cracking, significantly improving operational safety.
• Energy-Saving Design
  Equipped with economizers and condensers, the WNS three pass wet back boiler recovers waste heat from exhaust gases, lowering fuel consumption.
• Low Emission Combustion Technology
  Advanced burners reduce NOx emissions and help enterprises meet strict environmental regulations.
• Fully Automatic Control System
  The PLC system allows automatic ignition, load adjustment, and fault alarm functions, reducing manual intervention and improving reliability.
• Strong Load Adaptability
  The WNS three pass wet back boiler can quickly adjust to fluctuating steam demand, ensuring stable output in various production conditions.

Industry Applications of ZOZEN’s WNS Three Pass Wet Back Boilers

Case 1

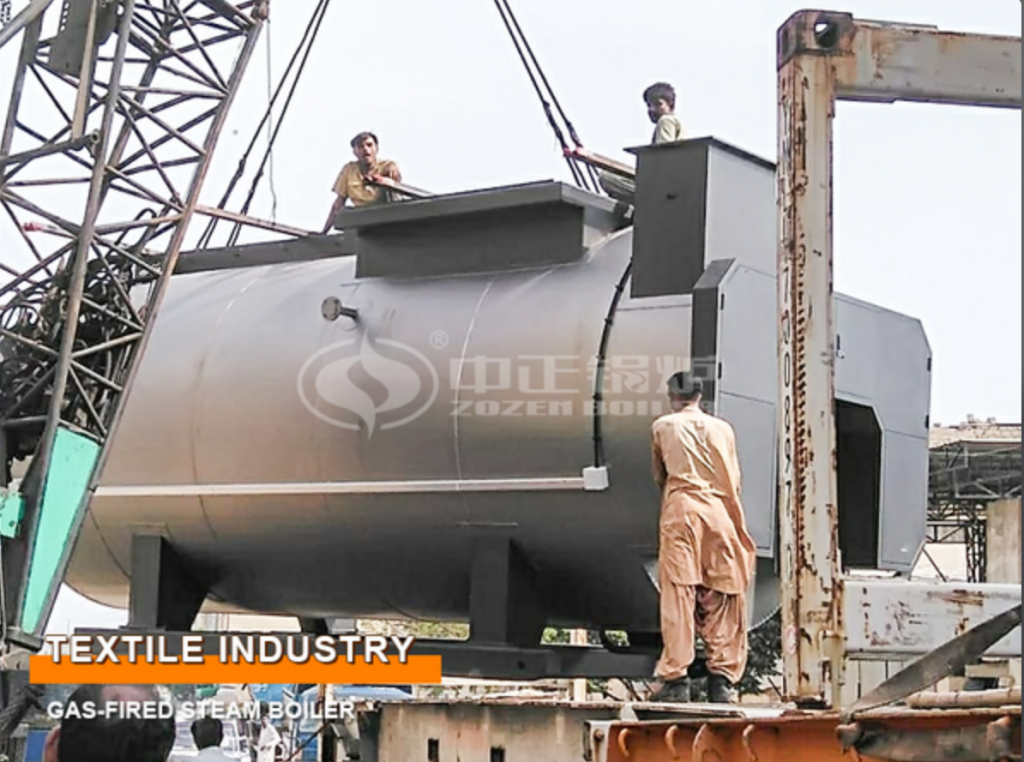

Founded in 1989, Chottani Industries has grown to become one of the best-known apparel providers in Pakistan. The company mainly engaged in various types of jeans apparel manufacturing and sales.

In the production of denim, steam is used in many processes, such as singeing, sizing, dyeing, drying, shaping, etc. This time, ZOZEN Boiler overcame the impact of the COVID-19 pandemic to provide a set of gas-fired steam boiler for customer’s textile mill.

ZOZEN gas-fired steam boiler adopts three-pass wet-back structure, the combustion chamber adopts large-diameter corrugated furnace, which enlarges the combustion space to ensure the full combustion of the fuel, in order to improve the thermal efficiency of the boiler. The thermal efficiency of WNS series boiler can reach 98%.

Due to the COVID-19 pandemic situation, the installation team of the boiler burner could not arrive on site. ZOZEN technical team called a meeting with the customer, burner supplier and agent, to jointly solve the problem of burner installation and debugging via online service.



Case 2

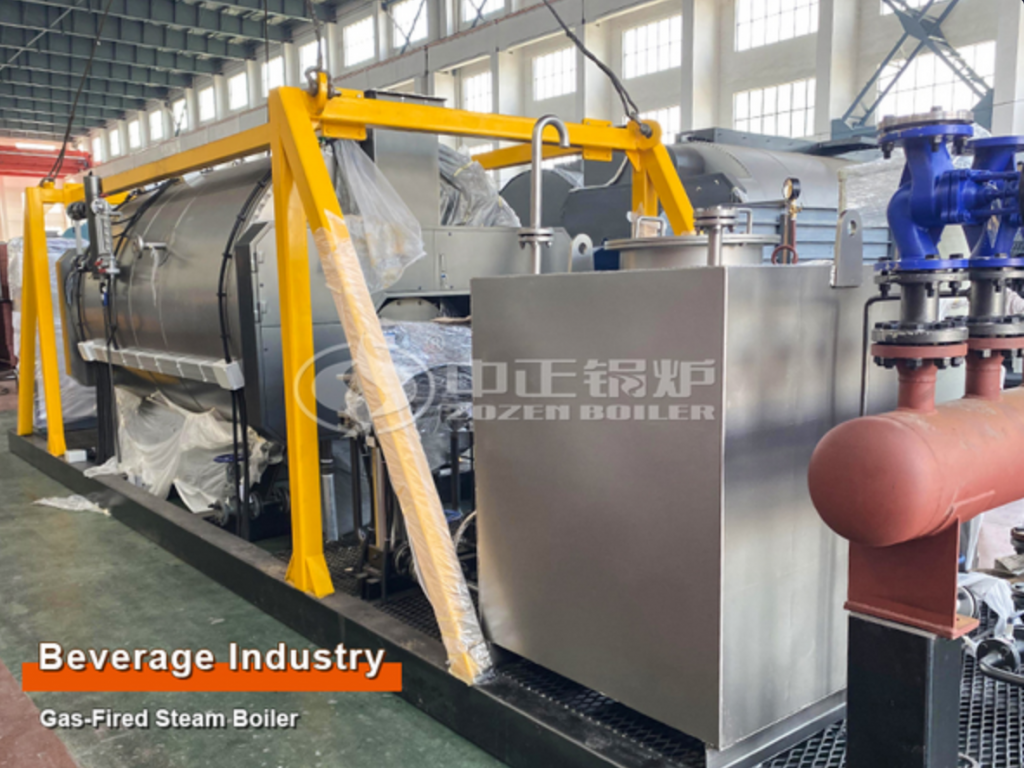

Sheenstar Technology Co., Ltd. located in Zhangjiagang city, is a professional provider of beverage packaging solutions. Sheenstar provides water treatment systems, filling production lines, carbonated beverage production and filling lines, juice production and filling lines, and 5-gallon water filling production lines.

Gas steam boilers are a common piece of equipment in the beverage packaging industry, providing an efficient, stable, and reliable steam supply for beverage production and packaging. In the beverage industry, steam is widely used in filling production lines, bottle washing equipment, filters, sterilization equipment, and hot water circulation systems, among others.

On this occasion, ZOZEN Boiler supplied a WNS series 1.5-ton three-pass gas steam boiler for Sheenstar’s project in the United States. This boiler has been certified by ASME, a globally recognized standard demonstrating that the boiler’s design, manufacturing, and inspection all meet stringent technical standards and regulatory requirements.

Around the world, many companies and government agencies require that their purchased equipment meet ASME certification standards. Therefore, boilers certified by ASME can more easily penetrate the international market, greatly enhancing a company’s brand influence and reputation.

ZOZEN’s WNS series 1.5-ton three-pass gas steam boiler has extensive applications in the beverage packaging industry, providing companies with an efficient, stable, and reliable steam supply, which in turn improves efficiency and quality in the production and packaging processes.



Case 3

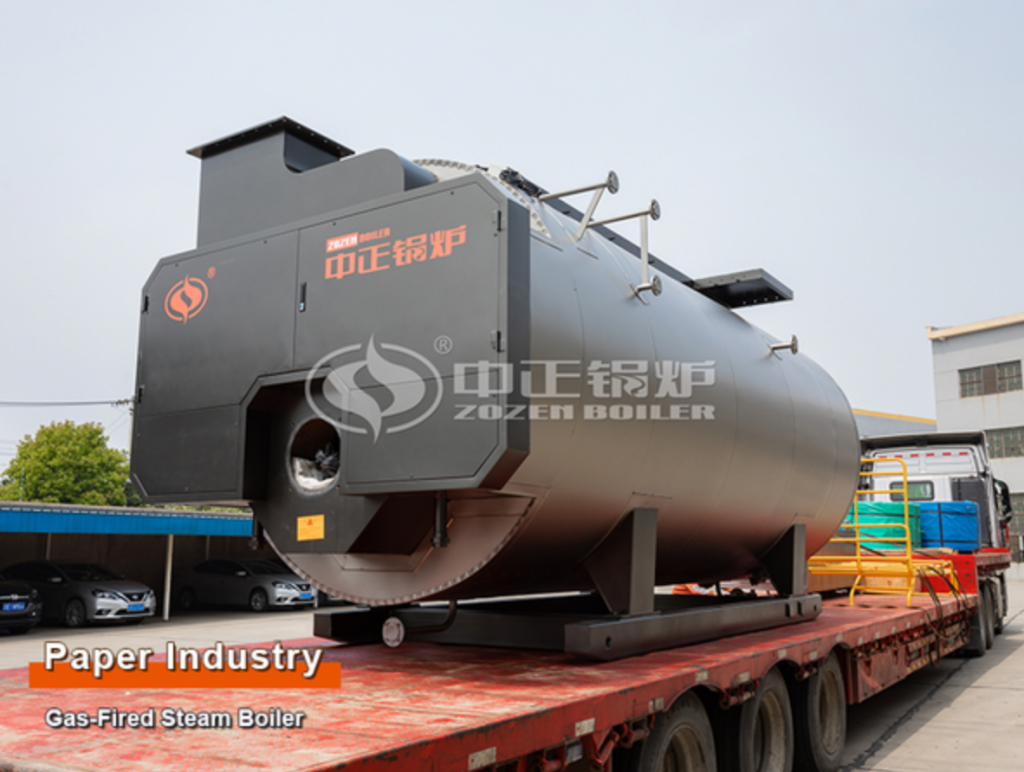

In the paper industry, high-quality steam is directly related to production efficiency and product quality. ZOZEN Boiler’s WNS series gas steam boilers are specially designed to meet this crucial requirement. In particular, our WNS series gas steam boiler, with its advanced three-pass design and optimized large furnace structure, can provide high-quality steam with low water content. This type of steam can ensure more efficient drying and pressing processes in papermaking, reduce energy consumption, and improve the smoothness and strength of the finished paper.

We recently exported this 6-ton WNS series gas steam boiler to a paper mill in Venezuela. The efficient operation of this boiler has significantly improved the plant’s production efficiency, especially in the drying and pressing processes, greatly reducing processing time, improving the quality of the paper, and reducing energy consumption.

For the paper industry, using high-quality steam with low water content can significantly reduce drying time, increase production line speed, and thus increase capacity. Additionally, high-quality steam helps improve the physical characteristics of the paper, such as uniform thickness and surface treatment quality, which is crucial for meeting the strict requirements of high-end markets.

Part 3: ZOZEN Boiler Strength and Comprehensive Service System

Behind the high performance of every three pass wet back boiler lies ZOZEN’s strong manufacturing capability and customer-focused service philosophy.

1. Advanced Manufacturing Facilities

ZOZEN operates modern production bases equipped with CNC cutting machines, robotic welding systems, and advanced testing equipment. Strict quality inspection ensures each three pass wet back boiler meets high safety and performance standards.

2. Strong R&D and Technical Expertise

ZOZEN continuously invests in research and development to improve combustion efficiency, structural design, and emission control technology. This innovation ensures that every three pass wet back boiler achieves optimal performance and durability.

3. International Certifications

ZOZEN products comply with ASME, CE, ISO, and other international certifications, demonstrating global quality recognition.

4. Comprehensive Service System

ZOZEN provides full lifecycle support for every three pass wet back boiler, including:

• Pre-sales technical consultation
• Customized solution design
• Installation guidance and commissioning
• Operator training
• 24/7 after-sales support
• Spare parts supply and maintenance services

This systematic service approach ensures stable long-term operation and customer satisfaction.

5. Global Market Presence

ZOZEN boilers have been exported to more than 100 countries and regions worldwide. With extensive international project experience, the company has built a strong reputation for quality and reliability.

Conclusion

The three pass wet back boiler is an advanced fire-tube boiler design known for its high thermal efficiency, structural durability, and operational safety. Compared with two-pass boilers, it offers better heat transfer performance, lower fuel consumption, and longer service life.

ZOZEN’s WNS series three pass wet back boiler combines optimized heat exchange technology, intelligent control systems, and low-emission combustion solutions to meet diverse industrial requirements. Supported by strong manufacturing capabilities and a comprehensive service system, ZOZEN continues to deliver reliable and energy-efficient boiler solutions worldwide.

For industries seeking high-performance steam generation equipment with long-term value, choosing a three pass wet back boiler from ZOZEN represents a dependable and efficient investment.
