Paper Mill Boiler: Reliable Steam Solutions for the Pulp and Paper Industry

The pulp and paper industry is one of the most energy-intensive industrial sectors. Large amounts of steam and heat are required in various production processes, making the paper mill boiler a critical component of the entire manufacturing system. From pulp digestion to paper drying, a stable and efficient paper mill boiler ensures smooth operation and consistent product quality.

This article introduces the role of the paper mill boiler in the papermaking process, explores suitable boiler types for paper mills, and highlights the boiler solutions provided by ZOZEN Boiler.

Part 1: What Boilers Are Used in Paper Mills and Their Functions

A paper mill boiler is designed to produce steam for different stages of the papermaking process. In modern paper mills, steam is widely used for heating, pulping, bleaching, drying, and power generation.

Key Uses of Paper Mill Boiler in Production

In a typical pulp and paper production line, the paper mill boiler performs several important functions.

• Pulp Cooking

During the pulping stage, wood chips or recycled fibers are processed under high temperature and pressure to break down lignin and separate fibers. A reliable paper mill boiler provides the high-pressure steam needed for this process.

• Paper Drying

After the pulp is formed into paper sheets, large drying cylinders are used to remove moisture. The paper mill boiler supplies the steam required to heat these drying cylinders, ensuring efficient moisture evaporation and consistent paper quality.

• Chemical Recovery and Process Heating

Paper mills often require heat for chemical treatment, bleaching, and washing processes. A stable paper mill boiler helps maintain the precise temperatures needed for these chemical reactions.

• Power Generation

Some large pulp and paper plants also use steam generated by the paper mill boiler for cogeneration systems, producing both electricity and thermal energy to improve overall energy efficiency.

Part 2: ZOZEN Boiler Models Suitable for the Paper Mill Industry

ZOZEN Boiler has extensive experience in providing boiler systems for the pulp and paper sector. Several of its boiler models are widely used as paper mill boiler solutions due to their efficiency, reliability, and flexible fuel options.

SZL Series Coal Fired Boilers

The SZL series is a water tube boiler with a double-drum structure and chain grate combustion system. It is commonly used as a paper mill boiler for large production lines.

Main specifications and advantages：

Thermal capacity:6-35 t/h

Working pressure：1-2.5 MPa

High thermal efficiency:＞81%

Available fuel：Bituminous coal, lean coal, anthracite

Stable combustion performance

Reliable operation for continuous industrial production

The SZL series can meet the high steam demand required by large paper mills.

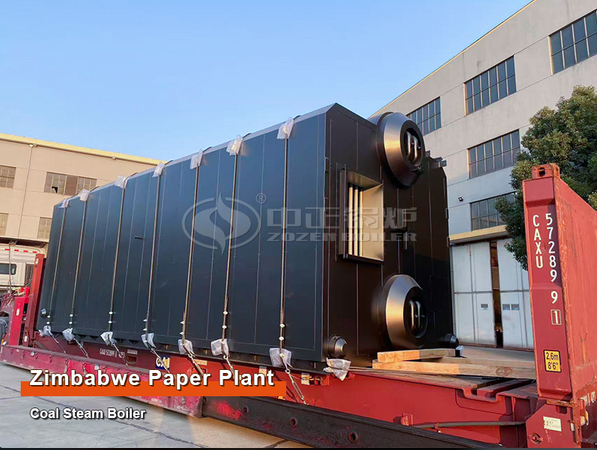

Case introduction: Aligned with the development needs of Zimbabwe’s local manufacturing sector, ZOZEN Boiler successfully delivered a 12 tph coal-fired steam boiler solution for the Baobab paper mill; the equipment has been shipped smoothly. The mill focuses on wastepaper recycling and reuse, producing paper for corrugated board and packaging products to meet core demands of Zimbabwe’s packaging industry.
As a boiler manufacturer deeply engaged in overseas markets, ZOZEN’s products have been exported to South Africa and multiple regions across Africa, with deep understanding of the operating conditions in African manufacturing.
The customized ZOZEN SZL series horizontal double-drum chain grate water-tube boiler is designed for key paper-making processes such as cooking and drying. Addressing the paper industry’s continuous steam demand, ZOZEN adopts a chain grate and independent air chamber design to ensure sufficient coal combustion, achieving thermal efficiency above 81% and significantly reducing fuel costs.

DZL Series Biomass Fired Boilers

For companies seeking renewable energy solutions, the DZL series biomass boiler is an excellent paper mill boiler option. This boiler uses biomass fuels such as wood chips, rice husks, and agricultural residues.

Main specifications and advantages：

Thermal capacity:10-40 t/h

Working pressure：1.25 MPa / 1.6 MPa / 2.5 MPa

High thermal efficiency:＞88%

Available fuel: Biomass pellets, rice husks, wood chips, palm shells, sawdust, etc.

Stable combustion performance

Environmentally friendly fuel utilization

Lower operating costs compared with fossil fuels

Stable combustion with chain grate technology

Suitable for mills that generate biomass waste

Many pulp and paper plants use the DZL series as a sustainable paper mill boiler.

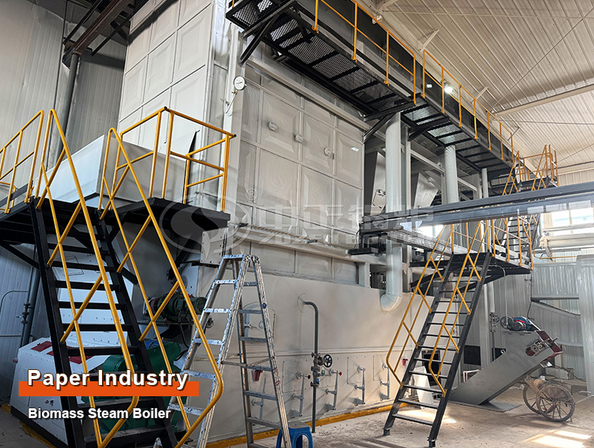

Case introduction: As a leading Asian hygiene and care enterprise, Vinda Group has adhered to its core philosophy of “Healthy Living Starts with Vinda” since its establishment in 1985, with business spanning household paper, personal care, and home cleaning solutions.

The paper industry, being a typical high energy-consuming sector, requires continuous steam supply throughout pulping, drying, and forming processes. During the initial planning phase of Vinda’s Liaoning base, the “Green Factory” objective was explicitly defined, demanding boiler systems that balance efficient energy supply with low-carbon emissions. Leveraging its profound expertise in biomass energy, ZOZEN Boiler customized a 15 tph DZL-series biomass steam boiler system for the project.

To address industry challenges such as high ash content in biomass fuels and tendencies for slagging/ash deposition, ZOZEN implemented innovative solutions including optimized furnace structure design, uninterrupted ash-cleaning systems, and customized heating surface layouts to ensure long-term stable operation.

WNS Series Gas and Oil Fired Boilers

The WNS series is a high-efficiency fire tube boiler designed for gas and oil fuels. This model is often selected as a paper mill boiler in facilities that prioritize clean energy and high automation.

Main specifications and advantages：

Thermal capacity: 1-20 t/h

Working pressure：0.7-2 MPa

High thermal efficiency:＞98% (with a condenser)

Available fuel：Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.

Fully automatic intelligent control system

Low NOx emissions

Compact design and easy installation

For small and medium-sized paper mills, the WNS series provides a reliable paper mill boiler solution with high efficiency and stable operation.

Case introduction:  ZOZEN Boiler successfully provided a renowned paper mill in Venezuela with a WNS series three-pass 15 tph gas-fired steam boiler, marking another breakthrough in the application of ZOZEN boilers in the paper industry.

The paper industry’s demand for boiler equipment mainly focuses on the following aspects:

High Efficiency: Paper production lines require a stable and continuous supply of large amounts of steam, and the thermal efficiency of boiler equipment directly impacts production costs.

Environmental Protection: With increasingly stringent environmental regulations, low-emission and clean-burning boilers have become an industry trend.

Automation: Paper mills generally pursue highly efficient automated production processes, leading to higher requirements for the intelligent operation of boilers.

The WNS series three-pass 15 tph gas-fired steam boiler provided by ZOZEN Boiler meets these demands:

High Efficiency and Energy Saving:

The WNS series adopts a three-pass structure design, paired with threaded smoke tubes and a corrugated furnace, significantly enhancing heat transfer efficiency. The thermal efficiency exceeds 98%.

Environmentally Friendly and Low Emissions:

Equipped with an advanced low-NOx burner, the boiler achieves nitrogen oxide (NOx) emissions below 30mg/Nm³, fully complying with international environmental standards.

Intelligent Control:

The boiler is equipped with a fully automatic intelligent control system, enabling remote monitoring and automated operation. This simplifies the operation process for the paper mill and enhances operational efficiency.

These different boiler models allow ZOZEN to provide customized paper mill boiler systems according to plant capacity, fuel conditions, and environmental requirements.

Part 3: ZOZEN Boiler’s Manufacturing Strength and Service System

Behind every reliable paper mill boiler system stands a strong manufacturing and engineering team. ZOZEN Boiler has established a solid reputation in the global industrial boiler market through advanced manufacturing technology and comprehensive technical services.

The company operates modern production facilities equipped with CNC cutting machines, robotic welding systems, and precision testing equipment. These advanced technologies ensure high-quality manufacturing standards for every paper mill boiler produced.

ZOZEN also places great emphasis on research and development. By continuously optimizing combustion systems, improving heat transfer efficiency, and enhancing environmental performance, the company provides energy-efficient solutions for industrial customers worldwide.

In addition to manufacturing, ZOZEN offers a complete service system covering the entire project lifecycle. These services include technical consultation, customized system design, installation guidance, commissioning support, and operator training.

Furthermore, ZOZEN provides responsive after-sales service and long-term spare parts supply to ensure stable operation of every paper mill boiler. With successful projects completed in more than 100 countries and regions, the company has accumulated extensive international experience in industrial boiler applications.

For pulp and paper manufacturers seeking efficient and reliable steam systems, choosing a high-performance paper mill boiler from ZOZEN ensures stable production, improved energy efficiency, and long-term operational reliability.
