Industrial oil gas boiler is suitable for heating needs in various industries, such as food industry, feed industry, dairy industry, chemical industry, rubber industry, etc. It is one of the main export products of ZOZEN, and ZOZEN’s customers are very satisfied with this boiler. This series of boilers are more generous in appearance and compact in design, so they are more convenient to transport and have less investment cost in infrastructure.
The oil and gas steam boiler is environmentally friendly, non-polluting and has low operating costs. The fully automatic device can automatically control water, pressure, temperature and water shortage protection, which can effectively ensure the safety of the operator and also reduce the cost of personnel input.

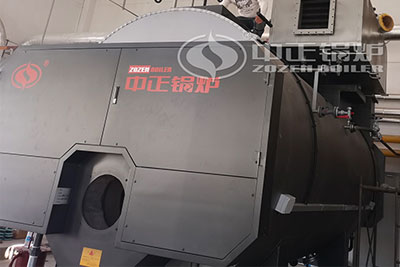

WNS oil gas fired boiler
The first concern of customers when purchasing boiler products is the operating cost, so how much fuel is needed per hour for a natural gas boiler? Calculated at 8,500 calories per cubic meter of natural gas combustion value, it takes 200,000 calories of heat to heat 1t of water to 100 degrees Celsius, plus the heat of vaporization and the heat required to exceed 100 degrees Celsius for high pressure steam temperature (depending on pressure), and heat loss of 8-15% (85-92% thermal efficiency). For example, a 1-steam-ton gas boiler consumes 75-80 cubic meters of gas per hour at an operating pressure of 1.0 MPa.
WNS oil gas fired boiler adopts the design of large volume combustion chamber, which makes the combustion more adequate and NOx emission as low as 30mg/m³. In addition, this series boiler adopts advanced waveform furnace bile structure, which not only increases the heat transfer area, but also meets the free expansion of the furnace bile after being heated. The flue pipe adopts threaded structure to strengthen the heat transfer effect. It adopts wet-back structure and full wrenching butt welds, which is highly reliable and low maintenance cost.

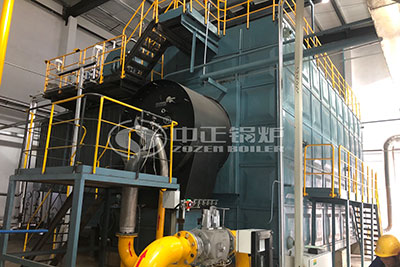

SZS oil-fired gas-fired boiler
The SZS oil-fired / gas-fired boiler is a water tube boiler with a “D” type double pot longitudinal arrangement, which has a compact structure, small footprint and good flame filling, facilitating the low nitrogen combustion of fuel and low nitrogen emission of flue gas. Fully enclosed welded structure with gas-tight inner shield and well-sealed furnace wall. Large heat receiving area, designed with large enough steam space to ensure stable boiler parameters. The tail is equipped with a flue gas condensation recovery device, which can effectively control the exhaust temperature, and the boiler has high thermal efficiency.
Industrial oil and gas boiler production must belong to the special equipment pressure vessel; its special characteristics also correspondingly require the production of Oil gas boiler manufacturer in Philippines must have A-class production qualifications, so that products and services have a certain degree of protection. ZOZEN is able to produce 1 ton – 160 tons of boiler products, including gas steam boilers, oil steam boilers, gas hot water boilers, oil and gas dual-use boilers, alcohol-based fuel boilers In addition to these boilers, ZOZEN also produces energy-saving and environment-friendly chain boilers, large fluidized bed boilers and heat-conducting oil boilers. If you have demand for the above products, please consult online customer service, we will provide you with a detailed quote.
