Gas Oil Fired Skid-mounted Steam Boiler

April 17, 2024

Gas oil fired skid-mounted steam boiler

Place of Origin: China
Brand Name: ZOZEN Boiler Co., Ltd.
Certification: ISO, CE, ASME
Model Number: WNS series
Minimum Order Quantity: 1 set
Price: Contact Us for Latest Price
Payment Terms: L/C, T/T
E-mail us:
WhatsApp:+86 18861589035

Detail Information

  • Product Name: Fire tube boiler
  • Output: Steam
  • Fuel Design: Nature gas, coke oven gas, biogas, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
  • Steam Capacity: 1 ton, 1.5 ton, 2 ton. 3 ton, 4 ton
  • Working Pressure: 1.0 Mpa, 1.25 Mpa, 1.6Mpa
  • Rated Steam Temperature: 184℃, 194℃,204℃
  • Warranty: 1 Year
  • Structure: horizontal wetback fire tube boiler
  • Application: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
  • Style: Packaged boiler
  • Design Efficiency: High Effciency 92%

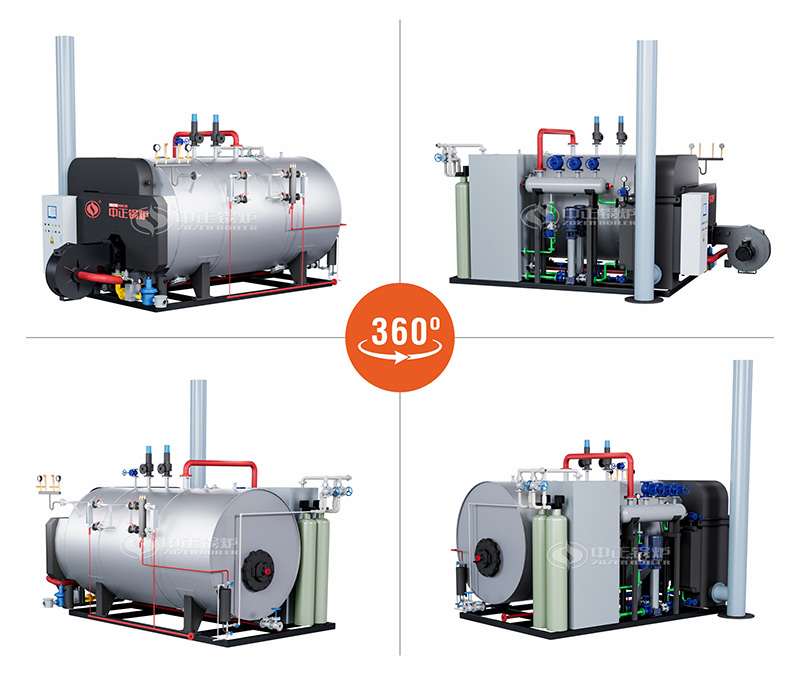

More Details of Gas Oil Skid-mounted Steam Boiler

More Details of WNS Series Gas Oil Skid-mounted Steam Boiler

Gas Oil Skid-mounted Steam Boiler Working Principle

WNS Series Gas Oil Skid-mounted Steam Boiler Working Principle

  • ZOZEN Boiler’s skid mounted boiler adopts an integrated design, with all auxiliary machines and accessories integrated on a single skid frame, resulting in a compact structure, rational layout, and effectively reduced footprint.
  • Customized professional burners merge the boiler control system with the burner control system, effectively enhancing the automation level of the boiler and further improving its energy-saving, environmental, and safety performance.

Gas Oil Skid-mounted Steam Boiler Advantages

WNS Series Gas Oil Skid-mounted Steam Boiler Advantages

Product Parameters

Model Steam












WNS1-1.0-Y(Q) 1 t/h 1.0 Mpa 184 ºC 6.3 t 5.00×2.25×2.50 (m) >92%
WNS1-1.25-Y(Q) 1 t/h 1.25 Mpa 194 ºC 6.3 t 5.00×2.25×2.50(m) >92%
WNS1.5-1.0-Y(Q) 1.5 t/h 1.0 Mpa 184 ºC 8.1 t 4.50×2.25×2.50 (m) >92%
WNS1.5-1.25-Y(Q) 1.5 t/h 1.25 Mpa 194 ºC 8.1 t 4.50×2.25×2.50 (m) >92%
WNS2-1.0-Y(Q) 2 t/h 1.0 Mpa 184 ºC 10.1 t 7.50×2.25×2.50 (m) >92%
WNS2-1.25-Y(Q) 2 t/h 1.25 Mpa 194 ºC 10.1 t 7.50×2.25×2.50(m) >92%
WNS3-1.0-Y(Q) 3 t/h 1.0 Mpa 184 ºC 11.8 t 8.50×2.25×2.50 (m) >92%
WNS3-1.25-Y(Q) 3 t/h 1.25 Mpa 194 ºC 11.8 t 8.50×2.25×2.50 (m) >92%
WNS4-1.6-Y(Q) 4 t/h 1.25 Mpa 194 ºC 13.9 t 10.50×2.25×2.50 (m) >92%
WNS4-1.6-Y(Q) 4 t/h 1.6 Mpa 204 ºC 13.9 t 10.50×2.25×2.50 (m) >92%

ZOZEN Factory

ZOZEN is one of the best modern boiler manufacturers in China, our products include steam boilers, hot water boilers and thermal oil heaters. ZOZEN boiler is located in Wuxi, covers 150 thousand square meters of production area, equipped with first-class production equipment, passed the ISO9001:2015 international quality system certification. The company gained the “S” and “U” steel seal from ASME of US.

Introduction about ZOZEN Boiler

Pre-sale service:

  • We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

  • We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

After-sale service:

  • provide full range of original spare parts.
  • Engineers abroad installation and commissioning service is available.
  • Our engineers will held a training for boiler workers to ensure the safe operation.
  • Free maintenance and repair for one year and lifelong service.
