Design of Fire Tube Boilers

Part 1: Understanding Fire Tube Boilers and Their Design

A fire tube boiler is a type of steam-generating device that utilizes the heat from flue gases produced by burning fuel. In this design, hot gases pass through a series of tubes that are surrounded by water, which absorbs heat and converts into steam. Fire tube boilers are widely used due to their straightforward design, compact size, and reliability.

Key Features of Fire Tube Boiler Design

• Simple Structure: The core design of a fire tube boiler includes a large shell containing water, with fire tubes running through it that house the hot flue gases. This results in an efficient heat transfer process.
• Low Operating Pressure: Fire tube boilers are typically designed to operate under lower pressures, making them suitable for applications where high-pressure steam generation is not required.
• Efficient Heat Transfer: The design allows for effective heat exchange between the hot gases and the water, leading to high thermal efficiency.
• Ease of Maintenance: The design features of fire tube boilers facilitate easy inspection and maintenance, making them user-friendly and reducing operational downtime.
• Compact Size: Fire tube boilers generally have a smaller footprint compared to water tube boilers, making them easier to install in confined spaces.

Due to these design elements, fire tube boilers are widely employed in industries such as manufacturing, food processing, and dyeing.

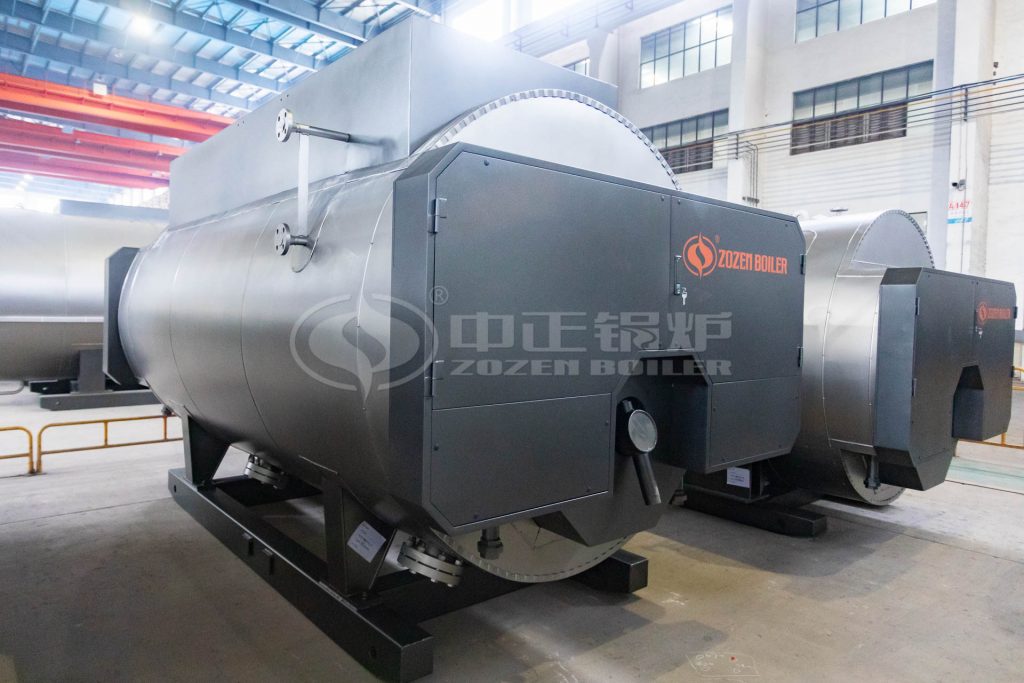

ZOZEN WNS Series Fire Tube Boilers

Among the manufacturers providing innovative fire tube boiler solutions, ZOZEN Boiler is recognized for its commitment to quality and performance. ZOZEN’s fire tube boilers are designed to meet diverse industry needs while ensuring operational efficiency.

Advantages of ZOZEN’s Fire Tube Boilers

• High Efficiency: ZOZEN’s fire tube boilers boast impressive thermal efficiency, often exceeding industry standards, which translates into lower fuel costs and reduced emissions.
• Robust Design: Constructed with quality materials, ZOZEN’s fire tube boiler design ensures durability and a longer service life, reducing maintenance requirements.
• Advanced Control Systems: Many of ZOZEN’s fire tube boilers are equipped with intelligent control systems that optimize operation, ensuring maximum efficiency while minimizing energy consumption.
• Versatility: ZOZEN’s fire tube boilers can be customized, catering to specific customer needs.
• Safety Features: The design incorporates multiple safety mechanisms that comply with international standards, ensuring safe operation under various conditions.

Technical Parameters

Capacity: 1-20 t/h

Operating Pressure: 0.7-2 MPa

Thermal efficiency: ≥98% (with a condenser)

Fuel Options: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.

Successful Cases

ZOZEN has successfully implemented fire tube boiler systems in various sectors. For example:

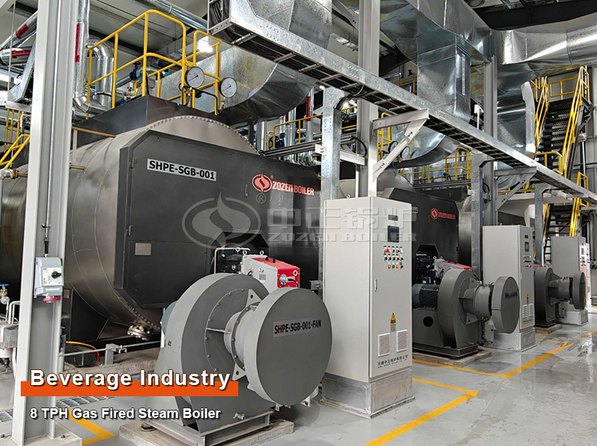

Case introduction: MCS Coca-Cola LLC became Coca-Cola’s authorized bottler in Mongolia in September 2001, helping the local market integrate with modern industry standards. Its parent company, MCS Group, was founded in 1993, starting with energy consulting. Today, it operates across multiple sectors, and its subsidiaries play a significant role in Mongolia’s economic growth.

To expand into new categories such as iced tea and juice, MCS Coca-Cola urgently needed highly efficient and stable steam boilers to support production. Because these new products require stringent temperature control, the stability of the steam boilers directly impacts product quality.

After three WNS series gas-fired steam boilers were installed, they delivered outstanding real-world performance in MCS Coca-Cola’s production. The burner atomizes the fuel for full combustion in the corrugated furnace, and the three-pass design ensures thorough heat utilization, significantly boosting thermal efficiency and effectively reducing fuel consumption. An intelligent control system precisely adjusts operating parameters, while 24/7 water level and pressure monitoring ensure stable and safe boiler operation.

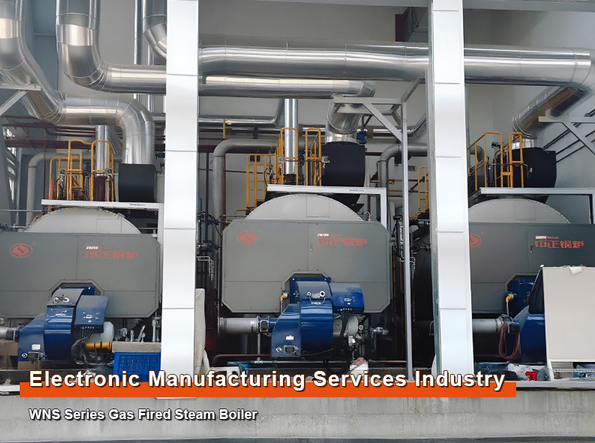

Case introduction: Hon Hai Precision Industry Co., Ltd. (with subsidiaries including Foxconn and a customer base covering Apple, Cisco, and many other leading enterprises) is focusing on three emerging industries and is seeking higher-level development by integrating three new hardware-software technologies. In its production processes, high-quality boilers are core equipment essential to ensuring efficient operations, creating an urgent need for reliable heat-supply solutions to support growth.

After careful consideration, Hon Hai Precision chose to cooperate with the well-known domestic industrial boiler manufacturer Wuxi ZOZEN Boiler Co., Ltd., purchasing three WNS series gas-fired steam boilers.

The ZOZEN WNS series gas-fired steam boiler is a flagship product featuring fully automatic and safe operation, high system thermal efficiency, easy operation and maintenance, and eco-friendly energy savings. It adopts ASME (American Society of Mechanical Engineers) certification standards and is registered with the National Board of Boiler and Pressure Vessel Inspectors in the United States, earning broad global recognition for safety and reliability.

In addition, ZOZEN’s cooperation with leading electronics manufacturers such as Luxshare Precision and SK has enabled it to accumulate rich service experience in the electronics manufacturing industry—another important reason for Hon Hai’s choice.

After the three WNS series gas-fired steam boilers were put into operation, their fully automatic safety features and high efficiency provided stable and reliable energy for Hon Hai Precision’s production, ensuring highly efficient line operation. They met the demand for high-quality heat supply during the company’s expansion into emerging industries and helped drive Hon Hai Precision’s business growth in related fields.

These success stories underline the effectiveness of ZOZEN’s fire tube boilers in meeting distinct industry demands.

ZOZEN’s Strengths and Service System

Aside from outstanding fire tube boiler solutions, ZOZEN Boiler is recognized for its exceptional service and support framework.

• Industry Expertise
  With years of experience in boiler manufacturing, ZOZEN’s team possesses extensive knowledge about fire tube boiler design and operation. Their experts work closely with clients to determine the best configurations and specifications based on specific requirements.
• Comprehensive Service Offering
  Consultation and Customization: ZOZEN provides tailored consultation services, assisting clients in selecting the appropriate design of fire tube boilers and specifications based on their needs.
• Professional Installation: ZOZEN ensures that fire tube boilers are installed correctly and swiftly, minimizing disruption to operations.
• Ongoing Maintenance and Support: The company offers a comprehensive maintenance program that includes routine inspections, troubleshooting, and emergency repairs, ensuring optimal performance and reliability.
• Commitment to Customer Satisfaction
  At ZOZEN, customer satisfaction is a priority. They maintain open lines of communication to quickly resolve any client inquiries or issues, fostering long-term relationships built on trust. This dedication has solidified ZOZEN’s reputation as a reliable partner in the boiler industry.

Conclusion
The design of fire tube boilers plays a vital role in their efficiency, reliability, and overall performance. With features like high thermal efficiency, compact structure, and ease of maintenance, fire tube boilers are suitable for many industrial applications. ZOZEN’s robust fire tube boiler solutions exemplify quality, adaptability, and performance, making them an excellent choice for businesses seeking effective steam generation systems. As the demand for efficient heating solutions continues to grow, the design and functionality of fire tube boilers will remain pivotal in various industries, reinforcing ZOZEN’s position as a leader in the boiler manufacturing field.
