Coal Fired Chain Grate Boiler

February 22, 2022
coal boiler
Capacity: 2 – 20t/h
Pressure: 1 – 2.5 Mpa
Temperature: 170 – 225 ℃
Fuel: Bituminous coal,lean coal,anthracite
Industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital

DZL Coal Fired Boilers Project

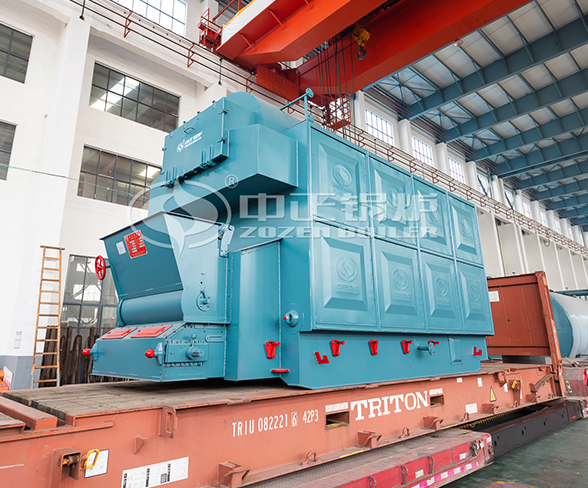

4 ton coal fired steam boilerassembly dzl coal fired boilers

Industrial DZL Coal Fired Boiler Introduction

DZL series coal boiler is quick fitting boiler, horizontal type, water and fire pipes with chain grating, uses medium quality soft coal. The boiler body is a single cylinder type, there are left and right double rows of fire pipe bundles inside the boiler cylinder to form convection heat receiving surfaces, the boiler cylinder to form convection heat receiving surfaces, the boiler cylinder and water-cooling walls at both sides shape the furnace radiation heat receiving surfaces; the combustion equipment uses chain grate; The electric control realizes grating step free timing, the extreme parameter alarm and inter-lock protection.

Zozen Boioer Co., Ltd. is one of the most powerful industrial boiler manufacturing enterprise in China
