Pressure: 0.8 – 1.0 Mpa
Temperature: 320 °C
Fuel: Natural gas, coke oven gas, bio-gas，liquid propane gas, diesel, heavy oil, light oil, crude oil
Industries: Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries
Gas Fired Thermal Oil Boiler Projects

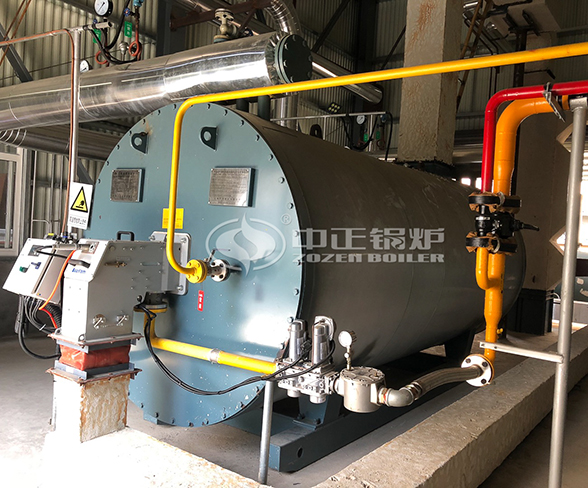

1.6 million kcal thermal oil boiler

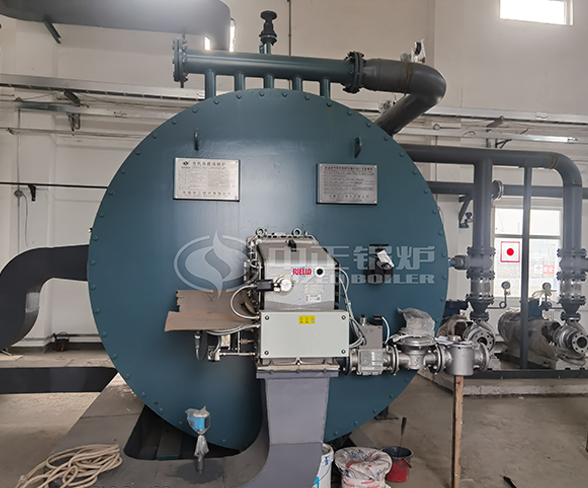

2 million kcal thermal oil heater

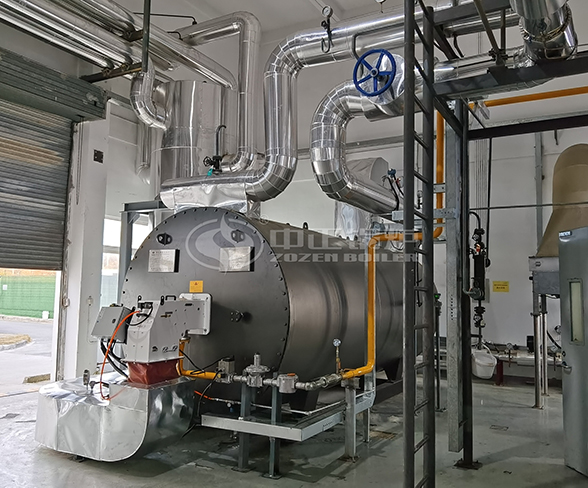

2.4 million kcal thermal oil boiler

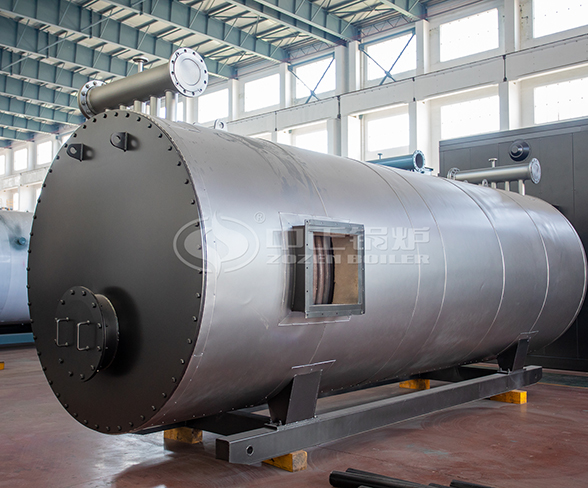

The YQ(Y)W series gas/oil thermal fluid heater is equipped with advanced combustion equipment and fully automated operation.This series of products whole factory, site installation, connected to the gas (oil) pipeline and electricity can be immediately put into use.
The cutting of steel pipe is made by nc 3d laser cutting machine.The manufacture of disc tube adopts nc coil automatic production line to achieve the effect of forming.
Argon arc welding technology is adopted for tube butt joint, and real-time X-ray imaging of welding seam is carried out to strictly ensure product quality.
Good heat preservation material is used inside the boiler and stainless steel plate is used on the outer side to minimize heat loss and improve the working environment.
The heater is assembled before leaving factory, easy to install, debug and operate.
Automatic operation, combustion, high level water tank liquid level, outlet temperature, flow automatic regulation, self-protection.
