12000kg Wood Fired Biomass Boiler

May 24, 2021
12000kg wood fired biomass boiler
Capacity: 12000kg
Pressure: 1.0 – 2.5 Mpa
Temperature: 184 – 350 ℃
Fuel: Biomass molding granules, wood chip, corn cob, saw dust
Industries: Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital

12000kg Wood Fired Biomass Boiler Project Images

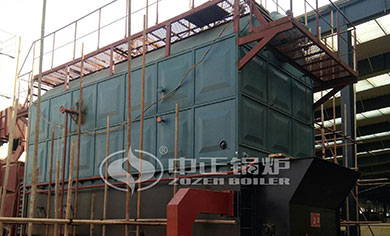

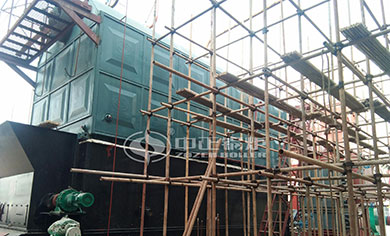

szl biomass fired steam boilerSZL wood fired boiler

12000kg Wood Fired Biomass Boiler Description

Industrial wood fired biomass boiler using a single cylinder longitudinal arrangement, compact structure, small footprint, good flame full degree. The furnace adopts the form of curved water-cooled tube, cylinder and left and right collection box, which can expand freely upward. The convection tube in the drum adopts the rolling thread smoke pipe to improve the winding of the working medium and increase the heat transfer. The outer packing guard plate is made of pressing guard plate with beautiful appearance. At the same time, the high thermal resistance material is used as the insulation layer, which has good thermal insulation performance. This series of biomass steam boiler configuration unique double-layer secondary air design, improve the ignition conditions of biomass fuel, the use of independent air chamber, to achieve a reasonable air distribution, so that the furnace to form a conducive to the combustion of the aerodynamic field, so that the combustion temperature is high, high combustion efficiency.
