What is a 3 Pass Steam Boiler?

May 26, 2025

What is a 3 Pass Steam Boiler?
A 3 pass steam boiler is an industrial boiler designed to produce steam for various applications, such as providing power for factories, heating buildings, and supporting industrial processes like chemical production, food manufacturing, and textile processing. It is highly efficient, environmentally friendly, and widely recognized for its superior performance in both industrial and commercial applications.

ZOZEN Boiler, a leading manufacturer in the industrial boiler industry, offers the WNS series 3 pass steam boiler, which has gained significant recognition for its exceptional energy efficiency and low emissions. Below, we answer some frequently asked questions about the 3 pass steam boiler and its advantages.

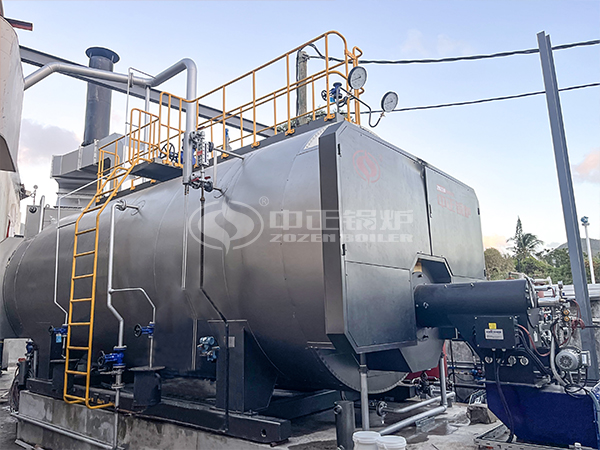

WNS series 3 pass steam boiler

WNS series 3 pass steam boiler

What Are the Key Features of a 3 Pass Steam Boiler?
A 3 pass steam boiler is characterized by the following features:

  1. The boiler body is horizontally placed, which provides a larger heating surface compared to vertical designs. This layout enhances heat transfer efficiency and ensures reliable performance.
  2. The fuel combustion process occurs directly within the boiler’s furnace, releasing thermal energy efficiently. This design minimizes heat loss and contributes to high thermal efficiency.
  3. The term “3 pass” refers to the design where hot flue gases pass through three distinct heat transfer areas within the boiler:

First Pass: Radiant heat transfer occurs as the combustion gases pass through the furnace. ZOZEN’s WNS series uses a corrugated furnace design, which increases heat transfer and enhances durability.

Second Pass: The gases flow through a series of threaded smoke tubes, which create turbulence to improve heat exchange efficiency.

Third Pass: The gases pass through smooth smoke tubes before exiting through the chimney, ensuring sufficient heat recovery.

  1. ZOZEN’s WNS series 3 pass steam boiler is equipped with advanced low-NOx burners and a condensing economizer to reduce NOx emissions to30mg/Nm³, meeting stringent environmental standards. The economizer also recovers waste heat from flue gases to preheat the boiler feedwater, achieving thermal efficiency of over 98%.

What Are the Advantages of ZOZEN’s WNS Series 3 Pass Steam Boiler?

  1. The WNS series incorporates a full-corrugated furnace and advanced heat transfer technologies, achieving an impressive thermal efficiency of up to 98% without economizers and over 98% with economizers installed.
  2. By employing low-NOx combustion technology, ZOZEN’s boilers meet the highest environmental standards, minimizing harmful emissions. The addition of a condensation economizer further reduces energy consumption and environmental impact.
  3. The WNS series 3 pass steam boiler features fully automated intelligent control systems with multiple safety protections, ensuring stable and safe operation. The hinged smoke box design simplifies maintenance and inspection.
  4. Made from premium materials and utilizing advanced welding technology, ZOZEN boilers are built to last, providing reliable performance over their long service life.
  5. The hinged design of the smoke box facilitates easy access for cleaning and inspection, reducing maintenance downtime and costs.

How to Choose the Right 3 Pass Steam Boiler?
When selecting a 3 pass steam boiler, consider the following factors:

  1. Choose a boiler model that matches your facility’s steam demand and energy consumption requirements.
  2. Ensure the boiler meets current environmental regulations for emissions and energy efficiency.
  3. Opt for a boiler with high thermal efficiency to reduce fuel costs and maximize energy savings.
  4. Select a manufacturer like ZOZEN Boiler, which offers robust after-sales service, technical support, and maintenance assistance.

Conclusion
The 3 pass steam boiler is an innovative and efficient solution for industrial steam generation. ZOZEN Boiler‘s WNS series exemplifies the best of this technology, offering exceptional thermal efficiency, low emissions, and long-lasting performance. Whether you’re in food processing, chemical production, or textile manufacturing, the WNS series 3 pass steam boiler can meet your needs while reducing your operational costs and environmental footprint.
