Water Tube Boiler System: Working Principle, Advantages, and ZOZEN Solutions

In modern industrial production, the water tube boiler system plays a critical role in delivering high-pressure, high-capacity steam for a wide range of applications. Compared with traditional fire-tube boilers, this type of boiler system is designed for higher efficiency, stronger pressure-bearing capability, and enhanced safety. In this article, we will explore what a water tube boiler system is, how it works, its key advantages, and which models are offered by ZOZEN Boiler.

Part 1: What Is a Water Tube Boiler System and How Does It Work?

What Is a Water Tube Boiler System?

A water tube boiler system is a type of industrial boiler in which water flows inside tubes while hot combustion gases circulate outside the tubes. This structural design is fundamentally different from a fire-tube boiler, where hot gases pass through tubes surrounded by water.

The water tube boiler system is typically used in applications that require high-pressure steam and large steam output. Because water circulates within small-diameter tubes, the system can withstand higher pressure and generate steam more rapidly than conventional boiler designs.

Main Components of a Water Tube Boiler System

A typical water tube boiler system includes:

• Steam drum
• Water drum (mud drum)
• Water tubes
• Furnace
• Burner
• Superheater (if required)
• Economizer
• Control and safety systems

These components work together to ensure efficient combustion, rapid heat transfer, and stable steam output.

Working Principle of a Water Tube Boiler System

The working process of a water tube boiler system can be summarized in several key steps:

step1: Fuel Combustion
Fuel (such as natural gas, oil, or other fuels) is burned in the furnace, producing high-temperature flue gases.

step2: Heat Transfer
The hot flue gases flow around the water-filled tubes. Heat is transferred through the tube walls, causing the water inside the tubes to heat up quickly.

step3: Water Circulation
As water absorbs heat, it turns into a mixture of water and steam. This mixture rises to the steam drum due to natural or forced circulation.

step4: Steam Separation
In the steam drum, steam is separated from water. The dry steam is then delivered to the industrial process, while the remaining water continues circulating within the water tube boiler system.

step5: Optional Superheating
If superheated steam is required, the steam passes through a superheater to reach higher temperatures.

Because of this efficient circulation and heat exchange mechanism, the water tube boiler system is particularly suitable for high-load and high-pressure applications.

Part 2: Advantages of a Water Tube Boiler System

The water tube boiler system offers numerous advantages that make it a preferred choice for large-scale industrial facilities.

1. High Pressure and Large Capacity

One of the biggest advantages of a water tube boiler system is its ability to operate at much higher pressures than fire-tube boilers. It is commonly used in power plants and heavy industries that require large volumes of steam.

2. Fast Steam Generation

Due to the smaller water volume inside the tubes, the water tube boiler system heats up quickly and produces steam faster. This allows rapid startup and better load response.

3. High Thermal Efficiency

The design allows efficient heat transfer and easy integration of energy-saving devices such as economizers and air preheaters. This improves overall thermal efficiency and reduces fuel consumption.

4. Improved Safety

Since the water volume in each tube is relatively small, the risk of large-scale explosion is lower. The water tube boiler system is generally considered safer under high-pressure conditions.

5. Strong Load Adaptability

Industrial production often experiences fluctuating steam demand. The water tube boiler system can respond quickly to load changes while maintaining stable pressure.

6. Flexible Design

The system can be customized with superheaters, condensers, low-NOx burners, and advanced control systems to meet different industrial requirements.

Because of these advantages, the water tube boiler system is widely used in power generation, petrochemical plants, large-scale manufacturing, and district heating projects.

Part 3: ZOZEN Water Tube Boiler System Models

As a professional industrial boiler manufacturer, ZOZEN Boiler offers several models that belong to the water tube boiler system category. These models are designed for high efficiency, environmental protection, and reliable long-term operation.

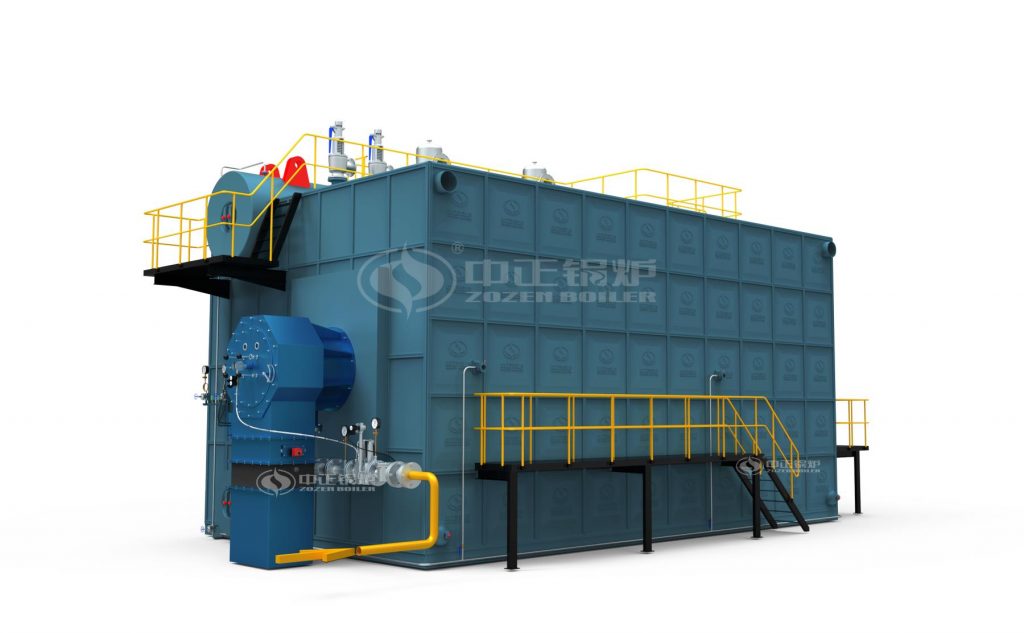

SZS Series Gas/Oil Water Tube Boiler

The SZS series is a double-drum, D-type water tube boiler system designed for gas and oil fuels.

Key Features:

• Capacity range: 2–110 t/h
• Working pressure: 1.25–5.3 MPa
• Membrane water wall structure
• High thermal efficiency up to 98%
• Low NOx emission design available

This water tube boiler system is widely used in chemical plants, pharmaceutical factories, textile mills, and other industries requiring high-pressure steam.

DHL Series Coal-Fired Water Tube Boiler

The DHL series is a corner-tube chain grate boiler, also classified as a water tube boiler system.

Key Features:

• Capacity range: 10–75 t/h
• Working pressure: up to 5.4 MPa
• Suitable for coal and biomass fuels
• Strong load adaptability

The DHL water tube boiler system is suitable for large industrial enterprises and centralized heating projects.

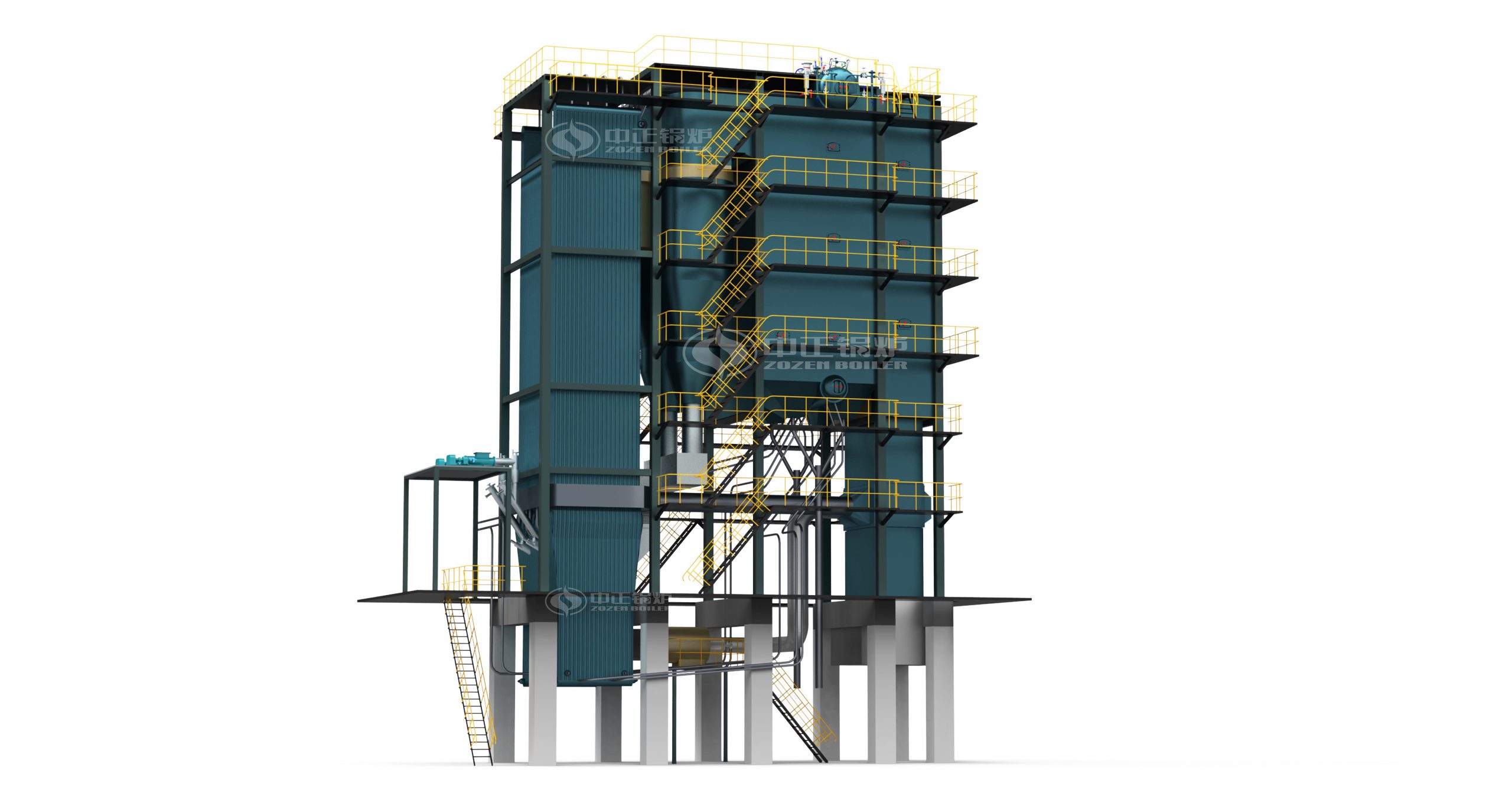

SHX Series Circulating Fluidized Bed Boiler

The SHX series is another advanced water tube boiler system offered by ZOZEN. It uses circulating fluidized bed combustion technology.

Key Features:

• Suitable for various solid fuels
• High combustion efficiency
• Low emission performance
• Ideal for large-scale industrial steam supply

With these product lines, ZOZEN provides comprehensive water tube boiler system solutions for different fuel types and industrial requirements.

ZOZEN Boiler Strength and Service System

ZOZEN Boiler has more than 30 years of experience in the design and manufacturing of industrial boilers. The company integrates R&D, production, quality control, and customer service into a complete system.

• Strong Manufacturing Capability
• Modern production workshops
• Advanced CNC cutting and automatic welding equipment
• Strict quality inspection procedures
• International certifications such as ASME and CE
• Export experience in over 100 countries
• ZOZEN ensures that each water tube boiler system meets international safety and performance standards.
• Comprehensive Service System
• ZOZEN provides full lifecycle service support, including:
• Professional pre-sales technical consultation
• Customized design solutions
• Installation and commissioning guidance
• Operator training programs
• 24/7 after-sales technical support
• Long-term spare parts supply

From project planning to long-term operation, ZOZEN offers reliable assistance to ensure stable and efficient performance of every water tube boiler system.

Conclusion

The water tube boiler system is a high-efficiency, high-pressure steam generation solution widely used in modern industry. With its fast steam production, strong load adaptability, and enhanced safety, it is ideal for large-scale industrial applications.

ZOZEN Boiler offers multiple water tube boiler system models, including the SZS, DHL, and SHX series, covering gas, oil, coal, and biomass fuels. Backed by strong manufacturing strength and a comprehensive service system, ZOZEN provides dependable boiler solutions for global customers seeking efficiency, safety, and long-term value.
