Industrial Biomass Boilers in Kanpur

November 3, 2020

In pharmaceutical, food, chemical, metallurgical and other industrial fields and industrial parks, as well as public buildings such as hotels and schools, industrial biomass boilers rapidly replaces coal as the preferred energy variety for industrial and commercial heating by virtue of its economic and environmental advantages. As boiler fuel, wood waste or plant fuel can replace coal or oil, which not only saves non-renewable fossil energy and enterprise energy consumption costs, but also causes less pollution to the environment because wood waste contains almost no sulfur.

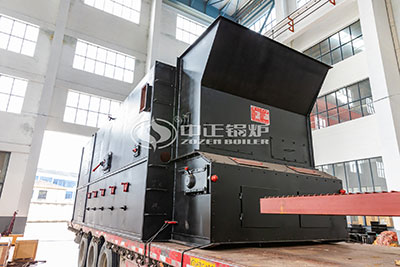

10 ton industrial biomass boilers

10 ton industrial biomass boilers

Biomass boilers is fueled by renewable resources such as sawdust, rice husk, straw, peanut shell, etc. ZOZEN Boiler Company has developed high-temperature gasification graded combustion industrial biomass boilers through constant experiments and research. The boiler adopts high-temperature gasification graded combustion mode, which has the following advantages:
1. High temperature oxidizing combustion technology and graded air distribution can make nitrogen oxide in flue gas 200mg/Nm;
2. Low sulfur content of biomass fuel, no desulfurization device can meet the national standard requirements;
3. Select the appropriate high-temperature grate plate material, improve the reliability of the grate, and ensure the safe production of the boiler.
4. Reasonably arrange furnace arch, furnace wall and furnace chamber heating surface, and adopt high-efficient heat transfer element of threaded pipe with thermal efficiency up to 88%.

1 ton biomass-fired boiler, for example, 1 ton equals 600000 calories, biomass particles combustion heat value of 3800 kcal, boiler combustion efficiency is calculated at 88%, then 1 ton biomass boiler consumption per hour = 600000 kcal / 3800 kcal/kg / 88% = 179 kg/h. So it can be concluded that 1 ton biomass boiler 1 hour fuel consumption is 179kg.

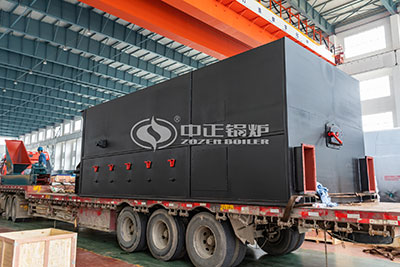

SZL biomass-fired boiler

SZL biomass-fired boiler

DZL series biomass boiler is a kind of horizontal three pass water fire tube boiler. After the fuel is fully burned in the furnace chamber, the high-temperature flue gas passes through the airfoil flue formed by two groups of water-wall pipes arranged on both sides of the furnace chamber to the front smoke box, and then enters the rear smoke box through the threaded pipe inserted in the pot barrel. It is pumped into the flue, dust collector and chimney by an induced draft fan and the back row is to the atmosphere. The boiler has the characteristics of safe and stable operation, simple operation and low failure rate.

Wuxi ZOZEN Boiler Co., LTD is a leading company in the industrial boiler industry. Our full range of boiler products are suitable for a wide range of industrial industries, such as chemical, printing and dyeing, textile, paper making, oil refining, food and so on. Our customers come from more than 100 countries and regions in the world.
