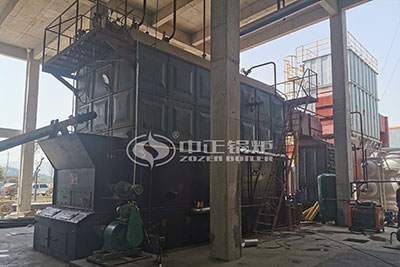

Horizontal biomass fired boilers uses molded biomass pellets as fuel. The fuel has renewable, low operating cost and less sulfur dioxide/nitrogen oxide content. In full consideration of the local environmental assessment conditions, according to the actual situation. Biomass pellet fuels are widely available (e.g., rice husk, corn stalks, rice stalks, wheat) with operating costs between coal and natural gas, which helps reduce production costs for businesses and is relatively clean for the environment we live in.
This series of biomass fired boilers run stably and reliably. The fuel falls from the coal scuttle onto the grate and enters the hearth to burn. After the rear arch refraction, the flame passes up through the combustion chambers on both sides of the car body, turns to the front smoke box, then bends to the threaded smoke pipe in the pot barrel, passes through the rear chimney smoke box and enters the throttler, and then is pumped by the induced draft fan through the flue to the chimney and then discharged into the atmosphere. Biomass steam boilers can have significant advantages, mainly through the use of a series of advanced technologies to achieve. The front and rear arches of the boiler adopt new energy-saving furnace arches and chain grate combustion, which is beneficial to the combustion of biomass fuel. In addition, it is equipped with a blower and induced draft fan for mechanical ventilation. It is also equipped with slag discharging machine to realize automatic slag discharging.
Biomass boiler combustion equipment in the factory manufacturing and installation, transportation to the site can be directly installed on the basis. It has the characteristics of reasonable structure, compact structure and less steel consumption, so that the performance, weight and structure size of the boiler have been significantly improved. At the same time, the use of high standard, high quality auxiliary machinery, accessories and automatic control equipment to ensure the safety of the boiler, the stable operation of heat. The appearance is novel; the boiler design is beautiful and generous.
Biomass boiler is equipped with a number of automatic regulation systems, multiple safety alarm mechanisms to ensure the safe operation of the boiler. The control system of the boiler steam pressure automatic regulation system enters the working state. When the steam pressure in the boiler is higher than or equal to the set pressure limit, the control system will output a stop signal until the combustion stops. When the system is working normally, start the feed water pump, the water pump is working; the water level differential pressure transmitter detects the water level signal, and keeps the boiler water level regulator to display the boiler water level. ZOZEN strictly checks every manufacturing process to ensure that every type of boiler is high quality. Welcome to contact us at any time.
