Capacity of Gas Steam Generator

June 16, 2021

The capacity of gas steam generator usually refers to the rated evaporation per hour, and in the case of a hot water boiler it is the heat carried by the hot water, 0.7MW of heat is equivalent to 1 ton of steam boiler.

The capacity of ZOZEN’s gas boiler covers a wide range from 1 ton to 110 tons. WNS series gas fired boiler: 1 ton, 1.5 ton, 2 ton, 3 ton, 4 ton, 5 ton, 6 ton, 8 ton, 10 ton, 15 ton, 20 ton; SZS series gas oil boiler: 20 ton, 25 ton, 30 ton, 35 ton, 40 ton, 50 ton, 65 ton, 75 ton, 100 ton, 110 ton.

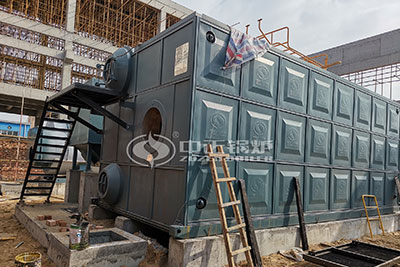

oil gas fired boiler

oil gas fired boiler

SZS oil gas fired boilers are different from coal-fired boilers in that they require the use of a burner to inject fuel into the boiler chamber and use the fire chamber for combustion without the use of grate facilities. Since SZS oil and gas steam boilers do not produce fuel slag after combustion, there is no need for slag removal facilities for oil and gas steam generator.

SZS oil gas boiler adopts automatic combustion and control system. Small steam boilers and their ventilation, water supply, control and auxiliary equipment are all set on one chassis, while large and medium-sized ones can be assembled in the factory.

The 20 ton SZS double drum longitudinal chamber gas boiler is equipped with imported brand burner, high degree of automation, automatic blowing according to the controller’s instruction, electronic automatic ignition, automatic combustion, wind-oil (gas) automatic proportional adjustment, safe and stable performance, and good combustion effect. At the same time, the boiler has flameout protection device to ensure safe operation.

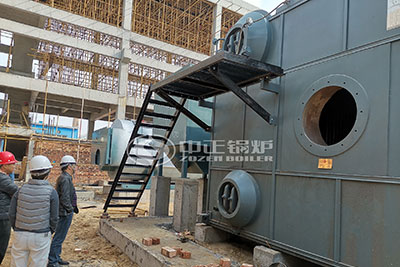

szs gas steam boiler

szs gas steam boiler

The horizontal oil gas boiler is a three-way full wet-back structure, with a large furnace chamber and threaded flue pipe design, which increases the radiation heat absorption of the furnace chamber and effectively saves energy and reduces consumption. The adoption of threaded flue pipe and waveform furnace bile greatly enhances the heat transfer effect and greatly saves fuel consumption. The boiler is designed according to the atmospheric pressure structure, so the boiler is in a pressure-free state without any safety danger. High-grade rock wool insulation material is used for multi-layer insulation, and k8 mirror stainless steel is used as the outer package, which has less heat loss and is beautiful and rust-resistant.

10 tons double drum gas boiler gas consumption: gas boiler gas consumption is calculated by the formula: gas boiler gas consumption (per hour) = boiler thermal power / fuel calorific value / gas boiler calorific value utilization rate. Calculated, the gas consumption of 10 ton gas boiler is about 780 cubic meters per hour. For more information about 10 tons gas boiler system solution and price, you can contact our online customer service directly for consultation.
