Understanding Combustion Boilers

Part 1：What are Combustion Boilers?

Combustion boilers are essential devices used to generate steam or hot water by burning fuel. They operate on the principle of converting fuel’s chemical energy into thermal energy through the combustion process. This energy is then used in various applications, including heating, power generation, and industrial processes.

Types and Classification of Combustion Boilers

Combustion boilers can be classified based on several criteria, including the type of fuel used, design, and operational aspects. Key classifications include:

By Fuel Type:

Gas-Fired Boilers: Utilize natural gas or propane as fuel.

Oil-Fired Boilers: Use oil products, including diesel, as the primary fuel source.

Coal-Fired Boilers: Operate using coal, often used in large power plants.

Biomass-Fired Boilers: Use fuels like wood chips, biomass pellets, and rice husks.

By Design:

Fire Tube Boilers: Hot gases pass through tubes surrounded by water. They are known for their compact design.

Water Tube Boilers: Water flows through tubes that are surrounded by hot gases, allowing for high pressure and large steam output.

By Operational Aspect:

Condensing Boilers: Recover some of the heat from flue gases, improving efficiency.

Non-Condensing Boilers: Traditional systems that do not reclaim heat from exhaust gases.

Understanding these classifications helps in selecting the right type of combustion boiler for specific applications.

Part 2: ZOZEN’s Combustion System for Boilers

ZOZEN’s combustion boilers incorporate advanced combustion technology to ensure efficient fuel usage. Key aspects include:

High-Efficiency Burners: ZOZEN gas/oil fired boilers use low NOx burners, which help minimize emissions while maximizing combustion efficiency.
Automatic Fuel Supply Systems: These systems ensure a consistent and precise fuel-air mixture, enhancing combustion effectiveness and reducing waste.
Advanced Monitoring Systems: These systems provide real-time data on pressure, temperature, and other critical parameters, allowing for prompt adjustments as needed.
Safety Interlocks: Built-in safety interlocks prevent unsafe operation, ensuring that the boiler shuts down in case of any abnormalities.
Comprehensive Alarm Systems: Visual and audible alarms alert operators to potential issues, enhancing overall safety in the workplace.

ZOZEN’s combustion boilers offer numerous features and advantages:

Enhanced Efficiency: Their design and combustion technology contribute to high efficiency, reducing operational costs and carbon footprint.
Versatile Applications: Suitable for a range of industries, including food processing, textiles, and chemical manufacturing, ZOZEN’s combustion boilers meet diverse heating needs.
Low Emissions: ZOZEN’s commitment to sustainability is reflected in their boilers, which are engineered to produce low emissions, helping clients comply with environmental regulations.
User-Friendly Operation: Intuitive control interfaces allow for ease of operation, making it simple for operators to manage boiler functions.

ZOZEN WNS Series Gas/Oil Fired Combustion Boiler

ZOZEN WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Main Specifications:

Thermal capacity: 1-20 t/h

Working pressure：0.7-2 MPa

High thermal efficiency:＞98% (with a condenser)

Available fuel：Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.

Case

Export to Mongolia: ZOZEN 8 tph Three-Pass Gas-Fired Steam Boilers for Coca-Cola Project

MCS Coca-Cola LLC became Coca-Cola’s authorized bottler in Mongolia in September 2001, helping the local market integrate with modern industry standards. Its parent company, MCS Group, was founded in 1993, starting with energy consulting. Today, it operates across multiple sectors, and its subsidiaries play a significant role in Mongolia’s economic growth.

To expand into new categories such as iced tea and juice, MCS Coca-Cola urgently needed highly efficient and stable steam boilers to support production. Because these new products require stringent temperature control, the stability of the steam boilers directly impacts product quality.

After three WNS series gas-fired steam boilers were installed, they delivered outstanding real-world performance in MCS Coca-Cola’s production. The burner atomizes the fuel for full combustion in the corrugated furnace, and the three-pass design ensures thorough heat utilization, significantly boosting thermal efficiency and effectively reducing fuel consumption. An intelligent control system precisely adjusts operating parameters, while 24/7 water level and pressure monitoring ensure stable and safe boiler operation.

ZOZEN Boiler is recognized for its innovative combustion boilers, designed to meet the varied needs of different industries. Let’s explore the key components of ZOZEN’s combustion boilers, focusing on the combustion system, structure and design, control and safety features, and advantages.

ZOZEN SZL Series Coal Fired Combustion Boiler

ZOZEN SZL series coal-fired boiler is a chain grate water tube boiler designed by ZOZEN Boiler based on advanced international technology and experience. It features a horizontal double-drum and vertical layout structure. The boiler consists of two major parts: the upper part is the heating surface and the lower part is the combustion equipment. The front of the boiler body is surrounded by water-cooled walls. The upper part is connected with drum and the lower part is connected with the header to form the combustion chamber, absorbing the radiation heat of the furnace. At the rear end, a convection tube bundle is arranged between the upper and lower drums. After the fuel is burned in the furnace, the high-temperature flue gas is swept across the convection tube bundle for the secondary return, then guided to a separately arranged economizer and finally enters the dust collector before being discharged through the chimney.

Main Specifications:

Thermal capacity: 6-35 t/h

Working pressure：1-2.5 MPa

High thermal efficiency:＞81%

Available fuel：Bituminous coal, lean coal, anthracite

Case

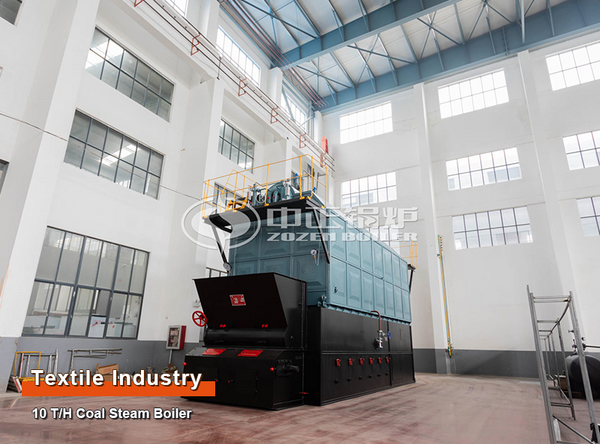

ZOZEN 10 tph Coal Fired Steam Boiler for Textile Plant in Tajikistan

ZOZEN Boiler provided a set of 10 tph SZL-type coal-fired steam boiler to a textile company in Tajikistan, which is used for production heating in the textile factory.

In textile production, the boiler is used to provide steam for various processes such as weaving, dyeing, printing, and finishing fabrics. Steam also helps maintain a stable temperature in the production environment, which is crucial for ensuring the quality of textiles.

The ZOZEN SZL-type coal-fired boiler adopts advanced water-cooled wall technology, which can ensure the stability of steam quality, avoid the problem of high or low steam humidity, and ensure the stability and quality of the production process.

This Tajikistan textile company found ZOZEN Boiler through market research and online search and established a partnership with ZOZEN. ZOZEN Boiler’s professional team has always maintained a positive attitude and efficient service capability in market expansion. By fully communicating with customers to understand their needs, ZOZEN provides customized boiler products and services, winning the trust and support of customers.

ZOZEN DZL Series Biomass Fired Combustion Boiler

ZOZEN DZL series third-generation biomass boiler is a water tube boiler composed of three drums. It is independently developed by ZOZEN Boiler and has independent intellectual property rights. The boiler adopts an assembly structure, consisting of two large components, the upper and lower parts.

Main specifications：

Thermal capacity:10-40 t/h

Working pressure：1.25 MPa / 1.6 MPa / 2.5 MPa

High thermal efficiency:＞88%

Case

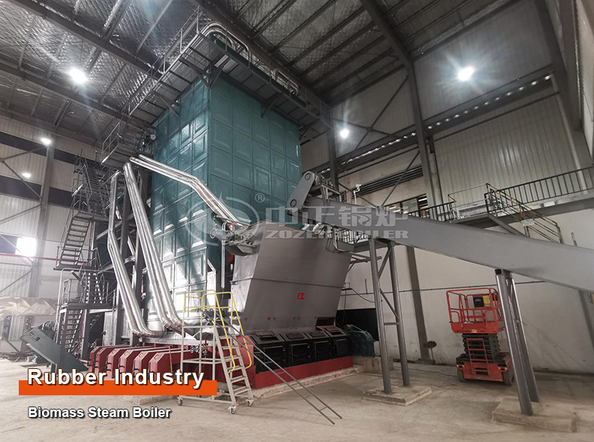

Export to Thailand: Rubber Industry ZOZEN 40 tph Biomass Steam Boiler Project

Since the establishment of General Rubber Thailand Co., Ltd. in 2019, it has not only successfully achieved an annual production capacity of 7.3 million sets of various types of tires, but also through technological innovation and capacity expansion, the annual production capacity has been increased to 16 million sets of semi-steel radial tires and 1.3 million sets of all-steel radial tires.

Steam boilers have a wide range of applications in the rubber and tire industry, including key production processes such as vulcanization, drying and curing, and thermal energy supply. The 40 tph DZL series biomass steam boiler from ZOZEN has provided strong support for the production of General Rubber Thailand Co., Ltd.

1. Environmental Friendliness: The use of biomass fuel has significantly reduced carbon emissions in the production process, aligning with global environmental protection trends.

2. Efficiency: With a thermal efficiency of up to 87.5%, it ensures the efficient use of energy and reduces production costs.

The cooperation between ZOZEN and General Rubber Thailand Co., Ltd. this time is not only an important upgrade for the Thai rubber industry but also another successful case of ZOZEN Boiler in the overseas market.

ZOZEN’s Strengths and Service System

The reputation of ZOZEN Boiler is not only built on high-quality combustion boilers but also on its robust service system that supports clients throughout their engagement.

Industry Expertise
With extensive experience in the boiler manufacturing industry, ZOZEN offers profound insights into the specific needs of various sectors. Their skilled engineers assist clients in selecting the ideal combustion boiler based on operational requirements.

Comprehensive Service Offering
Tailored Consultation: ZOZEN provides detailed consultations to help businesses identify their heating needs and choose the appropriate boiler system.

Professional Installation: The installation process is executed efficiently to minimize downtime, ensuring that the combustion boilers are operational as quickly as possible.

Ongoing Maintenance and Support: ZOZEN offers a complete maintenance program, including regular inspections and emergency services, to guarantee optimal performance and safety.

Commitment to Customer Satisfaction
At ZOZEN, customer satisfaction is a top priority. The company actively fosters a collaborative environment, allowing clients to communicate their needs and concerns effectively. This commitment has solidified ZOZEN’s standing as a trusted partner in the boiler industry.

Conclusion

Combustion boilers play a critical role in various industrial applications, converting fuel into useful thermal energy. ZOZEN’s innovative combustion boilers are designed to provide high efficiency, reliability, and low emissions, making them suitable for diverse sectors. By incorporating advanced combustion systems, robust structures, and comprehensive safety features, ZOZEN sets a high standard in the boiler manufacturing industry. As the demand for effective and environmentally-friendly heating solutions continues to rise, ZOZEN’s commitment to quality and excellence will remain a vital asset for businesses seeking advanced combustion boilers.
