Triple Drum Biomass Steam Boiler

May 8, 2024

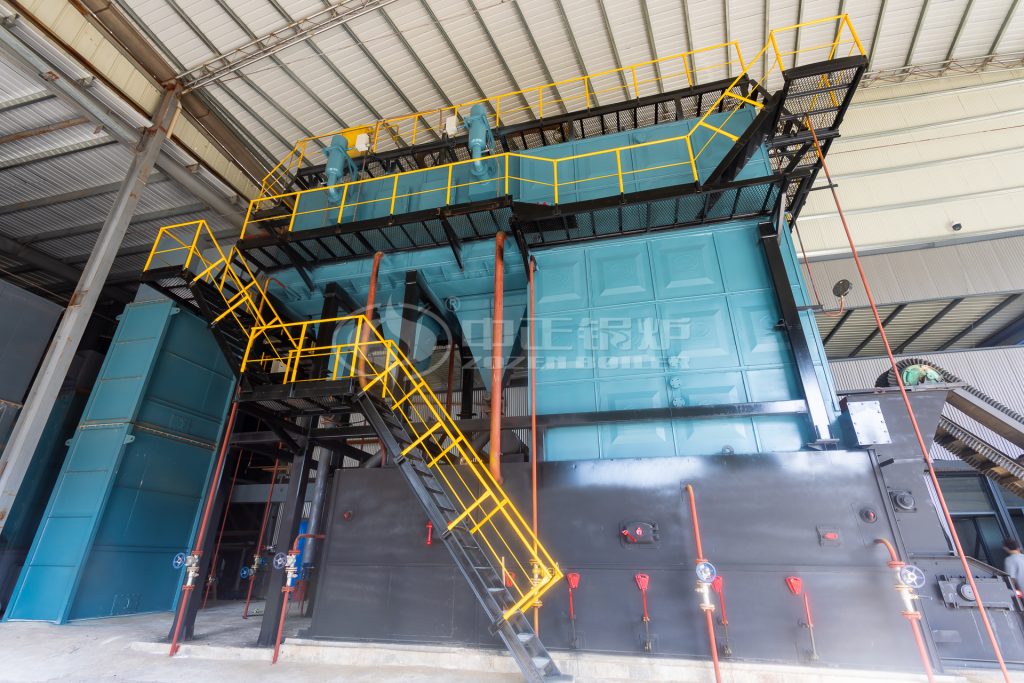

Three Drum Biomass Steam Boiler

Place of Origin: China
Brand Name: ZOZEN Boiler Co., Ltd.
Certification: ISO, CE, ASME
Model Number: DZL series
Minimum Order Quantity: 1 set
Price: Contact Us for Latest Price
Payment Terms: L/C, T/T
E-mail us: zhulin@zozen.com
WhatsApp:+86 18861589035

Get Quotation Now!

Detail Information

  • Output: Steam
  • Fuel Design: Biomass pellets, rice husks, wood chips, palm shells, sawdust, etc.
  • Steam Capacity: 15 ton, 20 ton, 25 ton, 30 ton, 35 ton, 40ton
  • Working Pressure: 1.25 MPa, 1.6 MPa,  2.5 MPa
  • Rated Steam Temperature: 194℃, 204℃, 225℃
  • Warranty: 1 Year
  • Structure: horizontal type water tube boiler
  • Application: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
  • Style: Packaged boiler
  • Design Efficiency: High Effciency 87.5%

Triple Drum Wood Biomass Steam Boiler Description

The DZL series tri-drum biomass-fired boiler is water tube boiler with three drums. It adopts the assembled structure with two parts. The upper part is heating surface and the lower part is combustion equipment. The front part of boiler body is surrounded by membrane walls whose upper part connects with boiler drum and lower part connects with header, which forms the combustion chamber to absorb the radiant heat; and there are dense convention tube bundles between the upper and lower drums at the rear of boiler, so the high-temperature flue gas generated by combustion in the furnace scours convection tube bundles, then enters the economizer and dust collector, and finally is exhausted into the atmosphere via the chimney.

Triple Drum Wood Biomass Steam Boiler Advantages

Triple Drum Wood Biomass Steam Boiler Advantages

Product Parameters

Model Steam

Capacity

 Steam

Pressure

 Steam

Temperature

 Feed water temperature Shipping

Dimension

 Heat

Efficiency
DZL15-1.25-SCⅢ 15 t/h 1.25 Mpa 194 ºC 104ºC 10.10×3.15×3.60
8.50×3.42×3.00 (m)		 >87.5%
DZL15-1.6-SCⅢ 15 t/h 1.6 Mpa 204 ºC 104ºC 10.10×3.15×3.60
8.50×3.42×3.00 (m)		 >87.5%
DZL15-2.5-SCⅢ 15t/h 2.5 Mpa 225 ºC 104ºC 10.10×3.15×3.60
8.50×3.42×3.00 (m)		 >87.5%
DZL20-1.25-SCⅢ 20 t/h 1.25 Mpa 194 ºC 104ºC 10.70×3.90×3.60
9.30×3.81×3.00(m)		 >87.5%
DZL20-1.6-SCⅢ 20 t/h 1.6 Mpa 204 ºC 104ºC 10.70×3.90×3.60
9.30×3.81×3.00 (m)		 >87.5%
DZL20-2.5-SCⅢ 20 t/h 2.5 Mpa 225 ºC 104ºC 10.70×3.90×3.60
9.30×3.81×3.00(m)		 >87.5%
DZL25-1.25-SCⅢ 25 t/h 1.25 Mpa 194 ºC 104ºC 10.70×3.90×3.60
9.30×3.81×3.00 (m)		 >87.5%
DZL25-1.6-SCⅢ 25 t/h 1.6 Mpa 204 ºC 104ºC 10.70×3.90×3.60
9.30×3.81×3.00 (m)		 >87.5%
DZL25-2.5-SCⅢ 25 t/h 2.5 Mpa 225 ºC 104ºC 10.70×3.90×3.60
9.30×3.81×3.00 (m)		 >87.5%
DZL30-1.25-SCⅢ 30 t/h 1.25 Mpa 194 ºC 104ºC 10.00×3.36×3.60(m) >87.5%
DZL30-1.6-SCⅢ 30 t/h 1.6 Mpa 204 ºC 104ºC 10.00×3.36×3.60(m) >87.5%
DZL30-2.5-SCⅢ 30 t/h 2.5 Mpa 225 ºC 104ºC 10.00×3.36×3.60(m) >87.5%
DZL35-1.25-SCⅢ 35 t/h 1.25 Mpa 194 ºC 104ºC 10.00×4.10×3.80(m) >87.5%
DZL35-1.6-SCⅢ 35 t/h 1.6 Mpa 204 ºC 104ºC 10.00×4.10×3.80(m) >87.5%
DZL35-2.5-SCⅢ 35 t/h 2.5 Mpa 225 ºC 104ºC 10.00×4.10×3.80(m) >87.5%
DZL40-1.25-SCⅢ 40 t/h 1.25 Mpa 194 ºC 104ºC 10.00×4.44×4.30(m) >87.5%
DZL40-1.6-SCⅢ 40 t/h 1.6 Mpa 204 ºC 104ºC 10.00×4.44×4.30(m) >87.5%
DZL40-2.5-SCⅢ 40 t/h 2.5 Mpa 225 ºC 104ºC 10.00×4.44×4.30(m) >87.5%

ZOZEN Factory

ZOZEN is one of the best modern boiler manufacturers in China, our products include steam boilers, hot water boilers and thermal oil heaters. ZOZEN boiler is located in Wuxi, covers 150 thousand square meters of production area, equipped with first-class production equipment, passed the ISO9001:2015 international quality system certification. The company gained the “S” and “U” steel seal from ASME of US.

Introduction about ZOZEN Boiler

Pre-sale service:

  • We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

  • We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

After-sale service:

  • provide full range of original spare parts.
  • Engineers abroad installation and commissioning service is available.
  • Our engineers will held a training for boiler workers to ensure the safe operation.
  • Free maintenance and repair for one year and lifelong service.
