Steam Boiler in a Factory: Applications, Selection Guide, and ZOZEN Support Services

In modern industrial production, energy efficiency and stable heat supply are critical to maintaining productivity and product quality. A steam boiler in a factory plays a central role in providing thermal energy for manufacturing processes, sanitation, heating, and power generation. From food processing plants to chemical production lines, steam systems are the backbone of many industrial operations.

This article explores the importance of a steam boiler in a factory, which industries rely on steam systems, how to select the right boiler, and why ZOZEN Boiler is a trusted supplier of industrial steam solutions worldwide.

Part 1: What Is a Steam Boiler in a Factory and Which Factories Use It?

A steam boiler in a factory is a pressure vessel designed to generate steam by heating water using fuel combustion. The produced steam is then distributed through pipelines to support various industrial processes. Steam is widely used because of its excellent heat transfer capability, controllability, and efficiency.

Types of Factories That Use Steam Boilers

A steam boiler in a factory is essential in many industries, including:

1. Food and Beverage Factories

Steam is used for sterilization, pasteurization, and cleaning. A reliable steam system ensures product safety and hygiene standards.

2. Pharmaceutical Factories

High-purity steam is required for sterilization and production processes. A stable steam boiler in a factory guarantees consistent pressure and temperature control.

3. Textile Factories

Steam supports dyeing, washing, and fabric finishing. Continuous steam supply improves production efficiency.

4. Chemical Factories

Steam is used for heating reactions, distillation, and material processing. A properly designed steam boiler in a factory ensures operational safety and performance.

5. Paper and Pulp Factories

Steam is necessary for pulping and drying processes. High-capacity boilers are often installed to maintain large-scale production.

6. Power and Energy Plants

Some factories use steam for driving turbines or supporting cogeneration systems.

Because production requirements vary across industries, selecting the right steam boiler in a factory is crucial for long-term operational success.

Part 2: How to Choose the Right Steam Boiler in a Factory

Choosing the appropriate steam boiler in a factory requires careful evaluation of technical and economic factors. The following aspects should be considered:

1. Steam Capacity

Determine the required steam output (e.g., 2 tph, 10 tph, 20 tph). Oversizing increases investment cost, while undersizing affects production.

2. Working Pressure

Different industries require different pressure levels. Pharmaceutical and chemical plants often need higher-pressure steam systems.

3. Fuel Type

Available fuels such as natural gas, oil, coal, or biomass directly influence operating costs and environmental performance.

4. Thermal Efficiency

High-efficiency boilers reduce fuel consumption and long-term operating expenses. Adding economizers or condensers improves energy recovery.

5. Emission Requirements

Environmental regulations require low NOx and low particulate emissions. A compliant steam boiler in a factory helps avoid regulatory risks.

6. Automation and Safety

Modern PLC control systems ensure automatic operation, fault detection, and safety protection.

7. Installation Space and Infrastructure

Boiler room size, water treatment systems, and piping layout must be planned carefully.

By evaluating these factors, enterprises can ensure that their steam boiler in a factory operates efficiently, safely, and economically.

Part 3: ZOZEN Steam Boiler Models, Advantages, and Parameters

As a professional manufacturer, ZOZEN provides a wide range of steam boiler solutions to meet diverse industrial needs. The company offers both fire-tube and water-tube designs suitable for different capacities and pressure requirements.

Main Steam Boiler Models

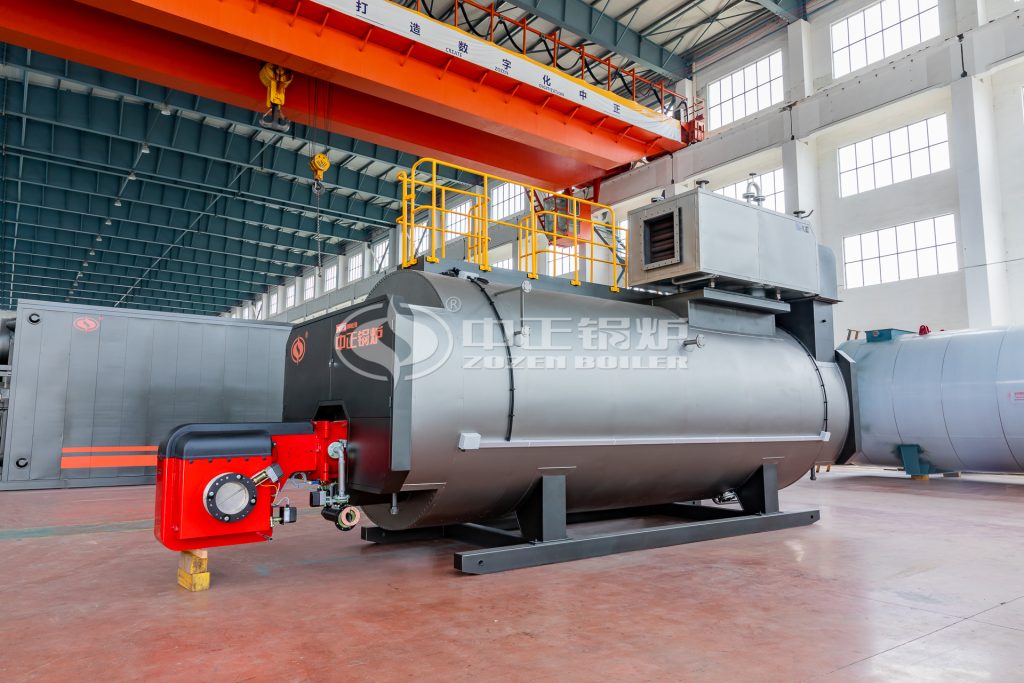

1. WNS Series (Oil/Gas-Fired Boiler)

Capacity: 1–20 tph

Working Pressure: 0.7–2 MPa

Thermal Efficiency: Up to 98%

Structure: Horizontal, three-pass, wet-back

Features: Low NOx emissions, compact design, fully automatic control

This model is widely used as a steam boiler in a factory for food, pharmaceutical, and textile industries.

2. SZS Series (Oil/Gas-Fired Boiler)

Capacity: 2–110 tph

Working Pressure: Up to 5.3 MPa

High thermal efficiency and strong load adaptability

Suitable for high-demand industrial applications

3. SZL Series (Coal or Biomass-Fired Boiler)

Thermal capacity: 6-35 t/h

Working pressure: 1-2.5 MPa

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.(Biomass-Fired Boiler )

Bituminous coal, lean coal, anthracite (Coal-Fired Boiler )

Double-drum, water-tube structure

Chain grate combustion system

Suitable for large-scale industrial production

4. DZL Series (Coal or Biomass-Fired Boiler)

Thermal capacity: 2-10 t/h

Working pressure: 1-2.5 MPa

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc. (Biomass-Fired Boiler)

Bituminous coal,lean coal,anthracite, (Coal-Fired Boiler)

Single-drum, compact design

Stable combustion and cost-effective performances

Each ZOZEN steam boiler in a factory is designed for durability, safety, and energy efficiency.

Advantages of ZOZEN Steam Boilers

• High thermal efficiency with heat recovery systems
• Low emission combustion technology
• Flexible fuel adaptability
• Intelligent PLC control system
• Strong load response capability
• Long service life with wet-back and optimized water circulation designs

These features ensure reliable operation in demanding industrial environments.

Part 4: ZOZEN’s Manufacturing Capability and Integrated Support Services

Behind every high-performance steam boiler in a factory is a strong production foundation and a professional technical team. ZOZEN has established a solid reputation in the global industrial boiler market through its advanced manufacturing capacity and customer-oriented service approach.

1. Modern Production Facilities

ZOZEN operates state-of-the-art manufacturing workshops equipped with CNC cutting equipment, automated welding systems, and advanced inspection instruments. A strict quality management system ensures that every steam boiler in a factory meets international safety and reliability standards.

2. Robust Engineering and R&D Strength

Through continuous technological innovation and engineering optimization, ZOZEN enhances combustion efficiency, improves heat transfer performance, and reduces emission levels. This technical expertise guarantees that each steam boiler in a factory delivers stable and energy-efficient operation.

3. Global Quality Certifications

ZOZEN boilers comply with internationally recognized standards such as ASME, CE, and ISO certifications, demonstrating product quality and compliance in worldwide markets.

4. End-to-End Service Network

ZOZEN offers comprehensive lifecycle services, including:

• Pre-project technical consultation
• Customized system design and engineering solutions
• On-site installation supervision and commissioning
• Professional operator training programs
• 24-hour after-sales technical assistance
• Long-term spare parts and maintenance support

This integrated service system ensures that every steam boiler in a factory operates smoothly, safely, and efficiently throughout its lifespan.

Conclusion

A steam boiler in a factory is a critical component in industries such as food processing, pharmaceuticals, textiles, chemicals, paper production, and energy generation. Selecting the right boiler requires careful consideration of steam capacity, pressure, fuel type, efficiency, and environmental standards.

With advanced boiler models, strong technical expertise, and a comprehensive service system, ZOZEN provides reliable and efficient steam solutions worldwide. For factories seeking long-term stability, energy savings, and compliance, investing in a high-performance steam boiler in a factory from ZOZEN is a smart and sustainable decision.
