Biomass boiler, as an energy-saving and environment-friendly industrial boiler, uses rice husk, palm husk, bagasse, wood chips, coconut husk and firewood as fuel, and provides heat energy for enterprise production through the combustion of fuel, which is widely used in textile industry, food processing, printing and dyeing, etc. The waste materials produced by enterprises in the process are used as fuel, which can also effectively reduce fuel costs. ZOZEN Boiler specializes in industrial boiler manufacturing and sales, and can provide suitable Palm kernel shells fuel biomass boiler price and high quality 2 ton – 20 ton biomass boiler products.

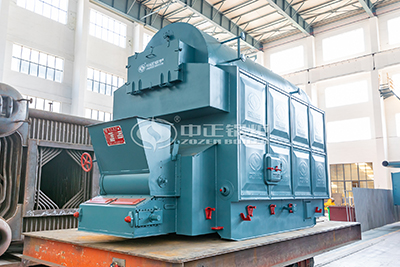

DZL series fast-fit chain grate biomass boiler is a single pot longitudinal chain grate boiler, the tail configuration of the coal saver collects the flue gas from the tail flue of the boiler to heat the boiler feed water, it absorbs the heat of the low temperature flue gas, reduces the flue gas exhaust temperature and saves energy to improve efficiency. At the same time, after the fuel is fully burned, the discharged ash and slag can be used directly as agricultural fertilizer, which is an energy-efficient and environmentally friendly product. This chain grate boiler is equipped with a blower and induced draft fan for mechanical ventilation, a spiral slag conveyor for mechanical slag discharge, and complete control and monitoring instruments for safe and reliable boiler operation.
The efficiency of biomass boilers is generally above 80%, and the boiler model is large, the combustion is more adequate, and the efficiency of the boiler is higher. The boiler adopts the most suitable furnace chamber for biomass fuel combustion – offset large furnace chamber. Relative to the traditional boiler chamber space is larger, while the arrangement of very reasonable secondary air, which is conducive to the full combustion of a large number of volatile components precipitated instantly during the combustion of biomass fuel. The exact thermal efficiency and fuel consumption should be consulted with the industrial boiler manufacturer.
The DZL series of fast-mounted biomass boilers adopt ZOZEN’s self-developed furnace structure, which successfully solves the problem of the bottom of the pot barrel being directly exposed to high-temperature flame radiation. Both the front and rear arches of the boiler adopt the integral casting structure supported by water-cooled wall tubes. The rear arch is low and long, and the exit section is counter-inclined, and the front arch is inclined at 45° to echo the rear arch, forming an obvious inverted “alpha” flame, which is conducive to the combustion of fuel and has excellent fuel adaptability.

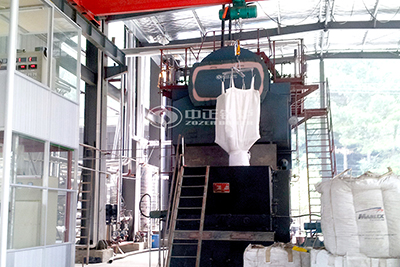

4 Ton DZL Series Biomass Steam Boiler Project
A customer in the textile industry needed a biomass steam boiler to provide a stable heat source for the sizing process. After fully understanding the customer’s needs, ZOZEN engineers customized the DZL series biomass boiler system solution for the textile factory. This boiler can be matched with the appropriate grate according to the actual fuel used by the customer. This 4 ton biomass boiler system is reasonably arranged with furnace arch, furnace wall and furnace heating surface, and adopts threaded flue tube high efficiency heat transfer element, designed with advanced burner to ensure full combustion of fuel, enhance heat transfer effect, and guarantee boiler thermal efficiency up to 88% or more.
ZOZEN has accumulated 13,350 successful boiler cases, with customers from more than 100 countries and regions around the world, and our customers are very satisfied with the quality of ZOZEN products and services. Please feel free to contact us online, via email or WhatsApp.
