Horizontal Thermal Fluid Boiler Manufacturer

November 17, 2020

ZOZEN’s horizontal thermal fluid boiler includes YYQW oil-fired / gas-fired boiler and YLW coal-fired / biomass-fired boiler. Thermal oil boiler can adapt to various fuels such as natural gas, biogas, coal and biomass, etc. Thermal oil is used as heat transfer medium, and the hot oil circulation pump is used to force the medium to carry out liquid circulation, and the heat energy is transferred to the heat equipment and then returned to the heating furnace for reheating. Thermal oil boiler is widely used in petroleum, chemical, pharmaceutical, textile, printing and dyeing, food and other industries that need high temperature due to its characteristics of low pressure, high temperature and precise control of working temperature.

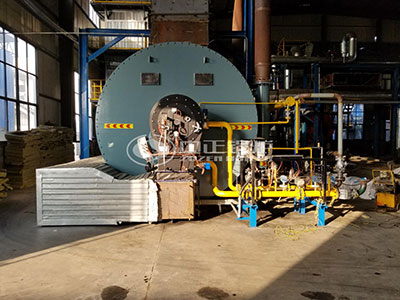

12000KW thermal fluid heater

12000KW thermal fluid heater

YYW horizontal gas /oil fired thermal oil furnace (with airborne hot body furnace) is a new type of heating equipment, which uses fuel and gas as heat source and thermal conducting oil as carrier to force the heat carrier to circulate in liquid phase through circulation pump and pump, and then transfers the heat to the heating equipment before returning to the heat furnace for re-heating. The heating surface is compact in structure. The heating surface is composed of inner, middle and outer (or inner and outer) densely arranged disk tubes. The inner coil is the radiation heating surface, and the outer surface of the middle and outer coils and the inner coil is the convective heating surface.

Characteristics of Horizontal Thermal Fluid Boiler

  1. High temperature and low pressure of the heat-conducting oil furnace; Accurate temperature control, high efficiency of heat energy.
  2. The heating surface adopts a dense row of disk pipe. The heating surface is sufficiently arranged to reduce the heat load on the pipe surface and make the use of thermal oil safer.
  3. The diameter and length of the radiation coil are fully adapted to the flame of the matching burner to ensure the reliable operation and sufficient cooling of the coil.
  4. The boiler structure is compact, greatly saving the boiler room floor area.
  5. Air preheater is set at the end of large boiler to improve boiler efficiency.
  6. On the basis of rigorous calculation, the convective heating surface adopts a higher reasonable flow rate of flue gas, so as to ensure the full heat transfer of the furnace body and the high thermal efficiency of the boiler system.
  7. Heating up to 300℃ above, the general working pressure in 1MPa, safe and reliable.

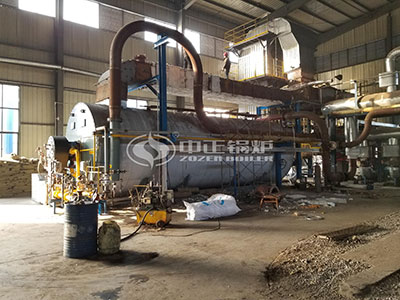

YYW thermal oil boiler

YYW thermal oil boiler

Wuxi ZOZEN Boiler Co., Ltd. independently developed more than 50 patented equipment, original cutting digital, welding automation, assembly mold technology standards, each boiler product through strict inspection. Thermal fluid heater manufacturer — ZOZEN boiler, produces durable boiler products that require minimal maintenance and maintenance to ensure efficient plant operation.
