Furnace – One of the Most Important Steam Boiler Equipment

February 20, 2020

From the perspective of the overall structure, the natural gas boilers consists of two parts, the main body and the auxiliary equipment. The two major parts achieve high efficiency operation of the boiler through good coordination and matching. The body refers to the main components such as the furnace, boiler, burner, water-cooled wall super heater, economizer, air preheater, frame and furnace wall. The two most important components are the furnace and boiler. Today, let’s simply talk about the hearth of a boiler.

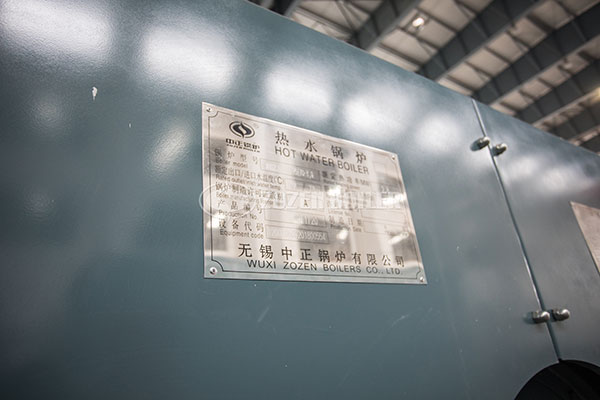

wns gas hot water boiler



The hearth of the boiler is also called the combustion chamber, which is the space for fuel combustion. It puts solid fuel on the grate, and the hearth for the combustion of the fire bed is called a layer fire, also known as a fire bed furnace. A furnace that can inject liquid, gas, or powdered solid fuel into a fire chamber for combustion is called a chamber furnace, also known as a fire chamber furnace. The air supports the coal particles to make them burn in a boiling state, and the furnace suitable for burning inferior fuel is called a boiling furnace, also known as a fluidized bed furnace. Cylindrical furnaces that use coal gas to rotate coal particles at high speed and burn strongly are called cyclones.

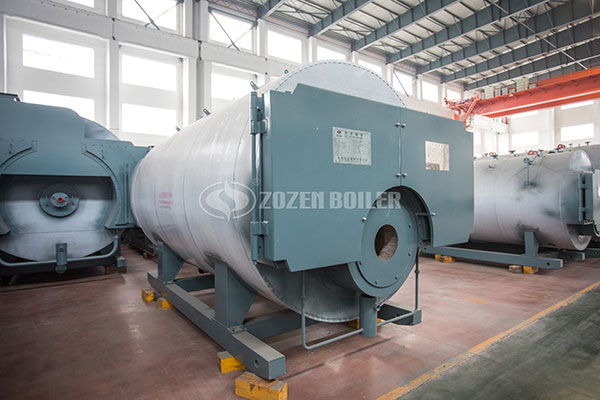

WNS natural gas boiler



The cross section of the boiler hearth is generally square or rectangular. The fuel burns in the furnace to form flames and high-temperature flue gas, so the furnace walls around the furnace are made of high-temperature resistant materials and thermal insulation materials. Water-cooled wall pipes are often laid on the inner surface of the furnace wall, which not only protects the furnace wall from burning, but also absorbs a large amount of radiant heat from flames and high-temperature smoke.

In addition, the furnace design needs to fully consider the characteristics of the fuel used. Every boiler should use as much fuel as originally designed. When fuels with widely differing characteristics are used, the economy and reliability of boiler operation may be reduced.
