Coal fired steam boilers is thermal equipment that burns coal to obtain heat, heats water to a certain temperature, and produces and outputs steam. With increasing awareness of environmental protection and the promotion of energy conservation and emission reduction in various regions, coal-fired boilers have been banned due to the large amount of polluting gases produced during operation. ZOZEN designs and produces new energy-saving and environment-friendly 1 ton – 100 tons coal-fired boilers according to emission standards. The boiler products optimize the combustion equipment and combustion chamber structure, strengthen fuel burnout technology, and adopt flue gas purification technology at the end of the flue, so as to reduce pollution caused by incomplete combustion of fuel.
Coal fired steam boilers generally use bituminous coal, anthracite, lean coal, lignite and other kinds of coal as fuel, mainly used in chemical industry, food, textile, clothing and other enterprises in the production process, 2 tons and 4 tons are relatively popular boiler models. There are three series of coal fired boilers, namely DZL series chain grate boiler, DHL series chain grate boiler and SZL series coal fired boiler. The three series have different structures to meet customers’ demands for different boiler fuels.
DZL series is a horizontal 3 pass boiler, the boiler body is a single boiler barrel vertical chain grate boiler, the boiler barrel is arranged with threaded fireworks tube to form a convection heating surface, the thermal efficiency is higher than the industry data, the measured energy efficiency is as high as 82%, the boiler adopts fast installation, assembly, semi-assembly factory, transportation, installation cycle and cost to reduce more than 30%.

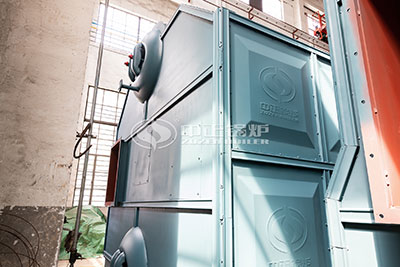

SZL series coal-fired water tube steam boiler is a double boiler tube vertical chain grate boiler. The boiler body is composed of longitudinally placed upper and lower boiler barrel and convection tube bundles. The left and right sides of the combustion chamber are equipped with light pipe and water wall pipe. There is a soda water separation device and a surface blowdown device in the upper pot, and a regular blowdown device in the lower pot. Economizer is arranged at the rear of the boiler. The combustion part adopts light chain grate to realize mechanical coal feeding, equipped with blower and induced draft fan for mechanical ventilation, and equipped with spiral slag extruder to realize automatic slag discharge.
Coal Fired Steam Boiler in Feed Industry
RRP Agro Farm’s, a feed producer in Bangladesh, purchased SZL series chain grate boilers produced by ZOZEN to provide safe and efficient heat source support for feed production. In the process of feed production, tempering is one of the important processes affecting the quality of feed particles, and the three elements of tempering are water, temperature and time, which are inseparable from the stable and efficient steam boiler equipment. According to the actual use requirements of RRP Agro Farm’s feed production line, ZOZEN Boiler customized SZL series coal-fired steam boiler system for customers, equipped with the design scheme of multi-pipe dust removal and water film dust removal, to ensure that the customer’s production line emissions meet environmental protection standards. At the same time, in order to ensure the full combustion of SZL series coal fired boilers, ZOZEN Boiler is equipped with several independent air silos and damper on the base, so that customers can reasonably distribute the wind according to the coal quality and combustion conditions, so as to achieve accurate air distribution and improve fuel utilization rate.
The automatic production line of ZOZEN Boiler and the CNC machining rate of over 80% further ensure the machining accuracy of each part of the boiler, and comprehensively improve the quality of SZL series coal-fired boilers from the structural design to the manufacturing process. Our products cover more than 100 countries and regions in the world, with high performance and good operating conditions.
